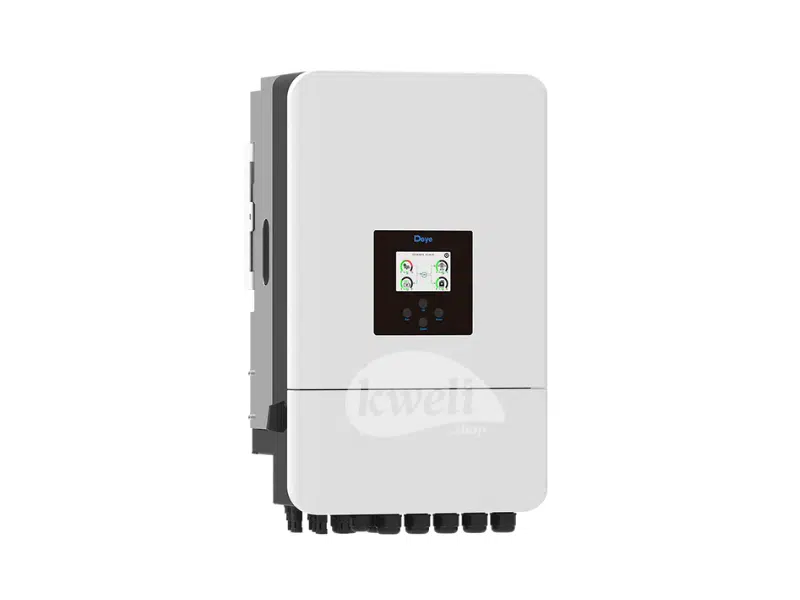

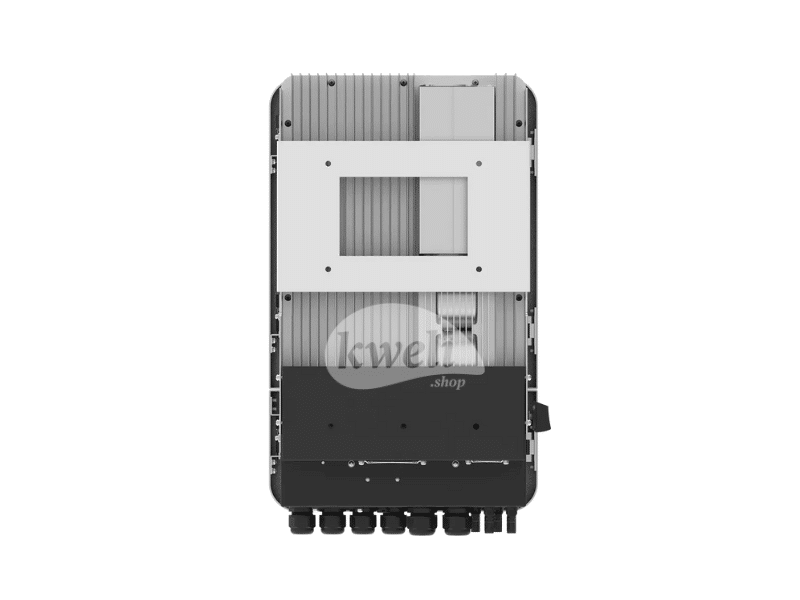

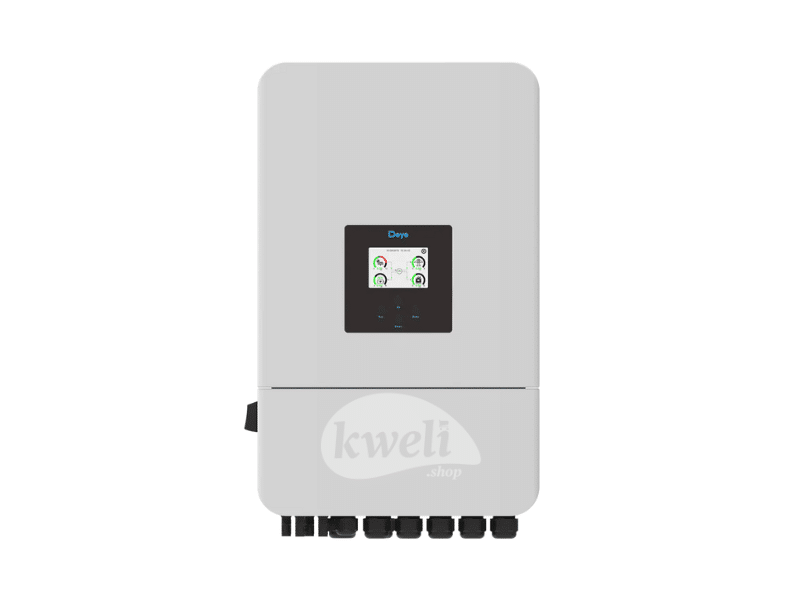

Description Deye 10kVA/10kW 48V Single Phase Hybrid Inverter Model: SUN-10K-SG05LP1-EU-SM2 General Specifications Rated Output Power: 10 kVA / 10 kW Battery Voltage: 48V (Lead-acid or Lithium-ion) Battery Voltage Range: 40–60 VDC Max. Charging Current: 210A Max. Discharging Current: 210A Number of Battery Inputs: 1 Topology: Transformerless (Non-isolated) Output Waveform: Pure sine wave PV Input Data Max. PV Access Power: 20,000 W Max. PV Input Power: 16,000 W Max. PV Input Voltage: 500 VDC Start-up Voltage: 125 V MPPT Voltage Range: 150–425 VDC Rated PV Input Voltage: 370 VDC No. of MPPT Trackers / Strings: 2 / (2+2) Max. Operating PV Input Current: 26 A + 26 A Max. Short-Circuit Current: 34 A + 34 A AC Input / Output Data Rated AC Power (On-grid/Off-grid): 10,000 W Max. AC Power: 11,000 W Rated AC Current (Output): 45.5 A / 43.5 A Max. AC Current (Output): 50 A / 47.9 A Max. Continuous AC Passthrough (grid → load): 50 A Peak Power (Off-grid): 2 × rated power (10s) Power Factor Adjustment: 0.8 leading to 0.8 lagging Rated Voltage: 220/230 V AC (±15%) Rated Frequency: 50 Hz / 60 Hz (±5 Hz) Grid Connection Form: L + N + PE THDi: <3% DC Injection Current: <0.5% Efficiency Max. Efficiency: 97.6% Euro Efficiency: 96.5% MPPT Efficiency: >99% Features & Protection Display: Colorful touch LCD IP Rating: IP65 (indoor/outdoor use) Monitoring: GPRS / WiFi / Bluetooth / 4G / LAN (optional) Integrated Protection: DC reverse polarity, AC overcurrent & overvoltage, thermal, DC/AC short-circuit, anti-islanding, insulation impedance detection, residual current detection Surge Protection: Type II (DC), Type III (AC) Parallel Operation: Up to 16 units (on-grid or off-grid) Battery Management: 6 programmable time periods for charging/discharging Generator Support: Compatible with diesel generator input Design & Usability Cooling: Intelligent air cooling Noise: <30 dB Ingress Protection: IP65 Cabinet Size (W×H×D): 366 × 589.5 × 237 mm (excluding connectors & brackets) Weight: 26.8 kg Operating Temperature: –40°C to +60°C (derating above 45°C) Altitude: ≤2000 m Warranty: 5 Years / 10 Years (site-dependent) Deye 10kVA/10kW 48V Single Phase Hybrid Inverter Strong PV Handling: Supports up to 20kWp PV access / 16kWp PV input with dual MPPT trackers. High Current Capability: 210A charging/discharging current, designed for lithium battery banks. Pure Sine Wave Output: Stable 230Vac power for sensitive electronics and essential appliances. Flexible Hybrid Operation: Compatible with solar, grid, or diesel generator input with automatic switchover. Scalable Design: Supports parallel connection of up to 16 units for larger on-grid or off-grid projects. Smart Battery Management: Up to 6 programmable charging/discharging periods to optimise storage and usage. Comprehensive Protection: Built-in surge, reverse polarity, short-circuit, thermal, insulation monitoring, residual current, and anti-islanding. Remote Monitoring: WiFi/4G/GPRS/LAN support with colourful touch LCD control panel. High Efficiency: Transformerless design with >97.6% maximum efficiency and >99% MPPT efficiency. Durable Outdoor Build: IP65-rated enclosure, lightweight 26.8kg design, and low noise (<30 dB).
