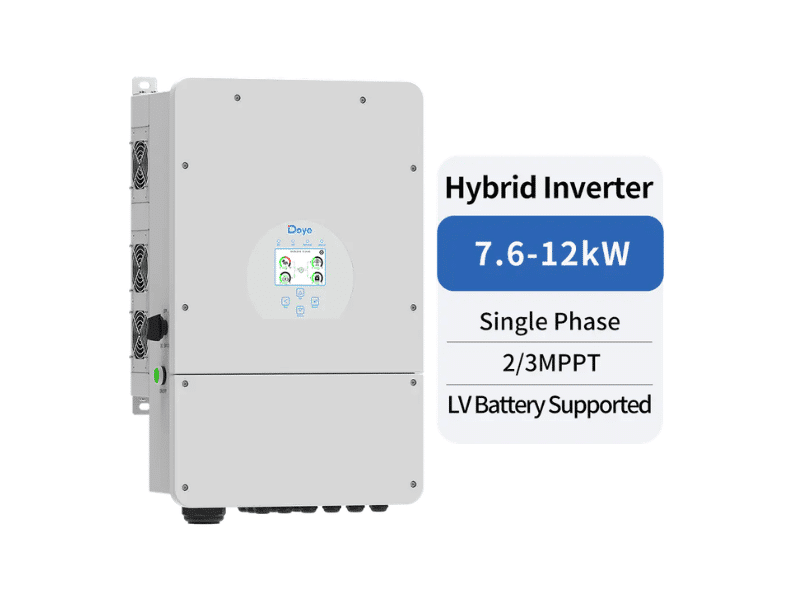

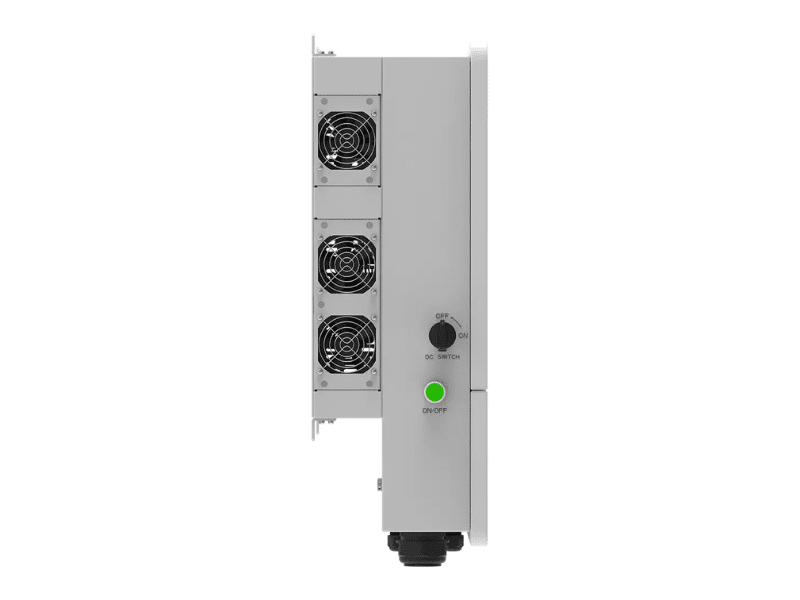

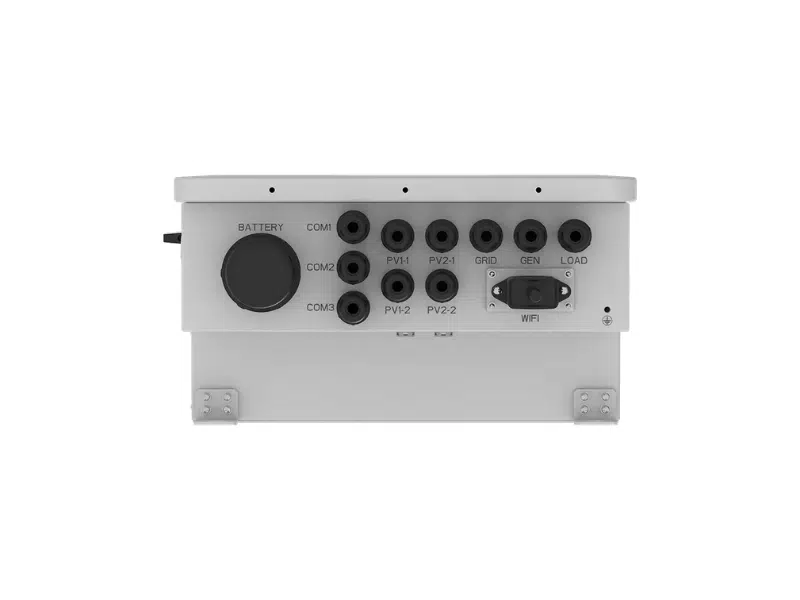

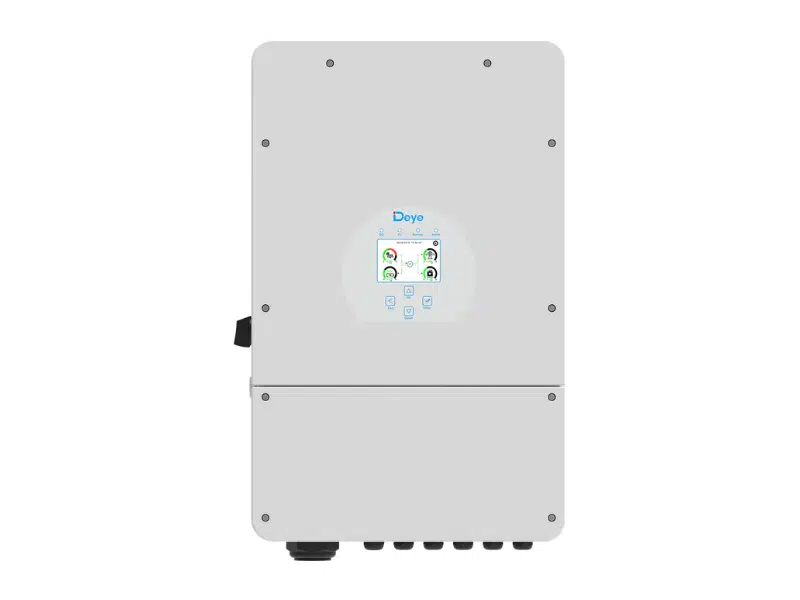

Buy new Deye 12kVA/12kW 48V Single Phase Hybrid Inverter SUN-12K-SG02LP1-EU-AM3; 3 MPPT, 24kWp/19.2kWp PV Access/Input, 500Vdc, 150–425V MPPT Range, 250A Charge/Discharge, WiFi/4G Monitoring, IP65 in

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 7,900,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description Deye 12kVA/12kW 48V Single Phase Hybrid Inverter SUN-12K-SG02LP1-EU-AM3 Datasheet Battery Specifications Battery Type: Lithium-ion or Lead-acid Battery Voltage Range: 40–60V Max Charging Current: 250A Max Discharging Current: 250A Charging Strategy: Self-adaptive to BMS Number of Battery Inputs: 1 PV / Solar Input Specifications Max PV Access Power: 24,000 W Max DC Input Power: 19,200 W Max PV Input Voltage: 500Vdc Start-up Voltage: 125V MPPT Voltage Range: 150–425V Rated PV Input Voltage: 370V MPPT Trackers: 3 Strings per MPPT: 2 + 2 + 2 AC Output Specifications Rated Output Power: 12,000W Max Apparent Power: 13,200VA Rated Voltage: 220/230V (Single Phase) Rated Frequency: 50/60Hz Max Continuous AC Passthrough: 60A Peak Power (Off-grid): 2× rated power for 10 seconds Power Factor Adjustment Range: 0.8 leading to 0.8 lagging Hybrid & System Integration Supports solar, battery, grid and generator operation Stores energy from diesel generator AC coupling support for retrofitting existing solar systems Parallel operation up to 16 units (on-grid and off-grid) Six programmable battery charge and discharge time periods Protection & General Specifications Ingress Protection Rating: IP65 Surge Protection: Type II (DC and AC) Anti-islanding protection DC reverse polarity protection AC overcurrent and short-circuit protection Residual current detection Cooling Method: Intelligent air cooling Noise Level: <45 dB Operating Temperature Range: -40°C to +60°C Monitoring & Communication Monitoring Options: WiFi, 4G, Bluetooth, LAN (optional modules) Communication Interfaces: RS485, RS232, CAN Deye 12kVA/12kW 48V Single Phase Hybrid Inverter highlights 12kW single-phase hybrid output suitable for large homes and light commercial installations. 3 MPPT trackers supporting up to 6 PV strings. 24kWp PV access with 19.2kWp maximum DC input power. 250A maximum battery charge and discharge current. 48V low-voltage battery compatibility (lithium and lead-acid). 500Vdc maximum PV input voltage. Wide 150–425V MPPT operating range. Parallel capability up to 16 units. Generator integration and AC coupling support. IP65-rated enclosure with WiFi/4G monitoring support.
