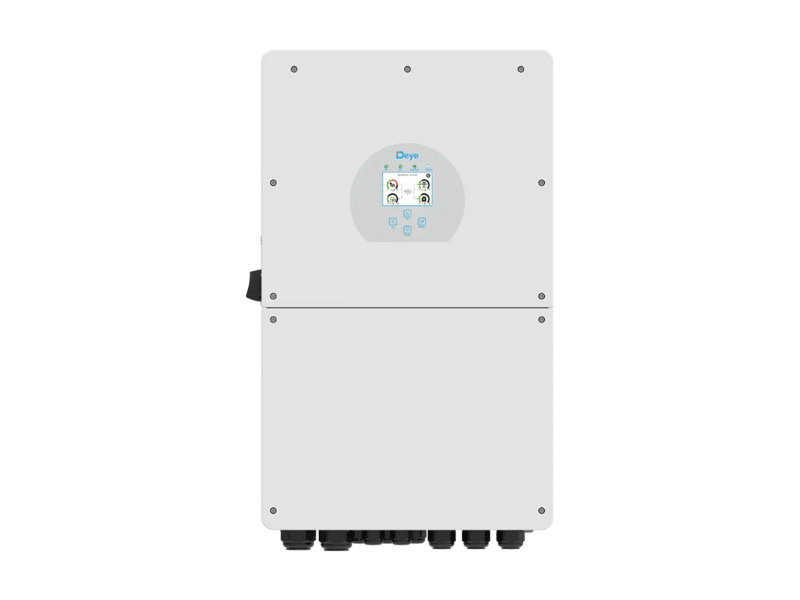

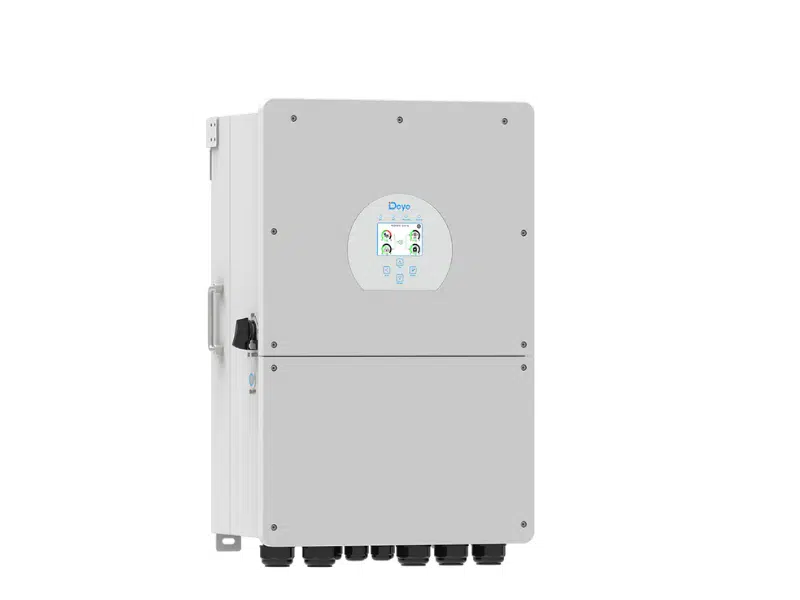

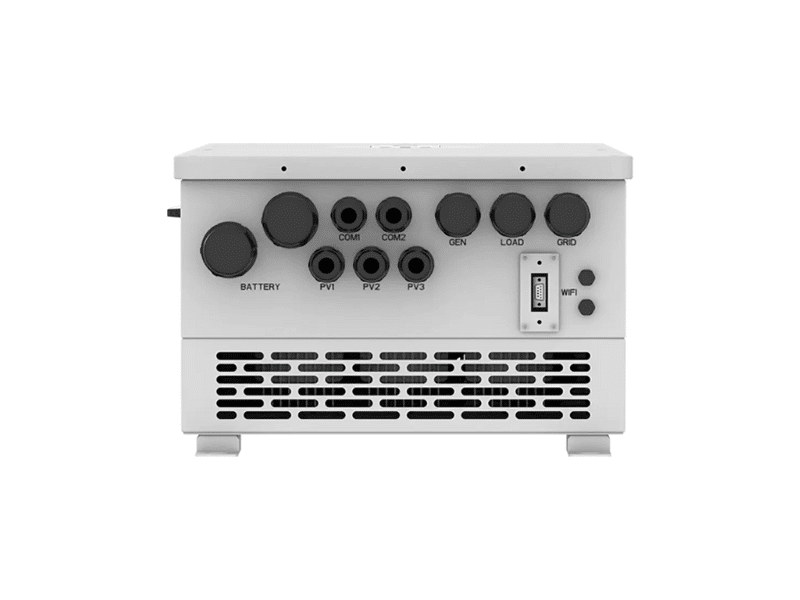

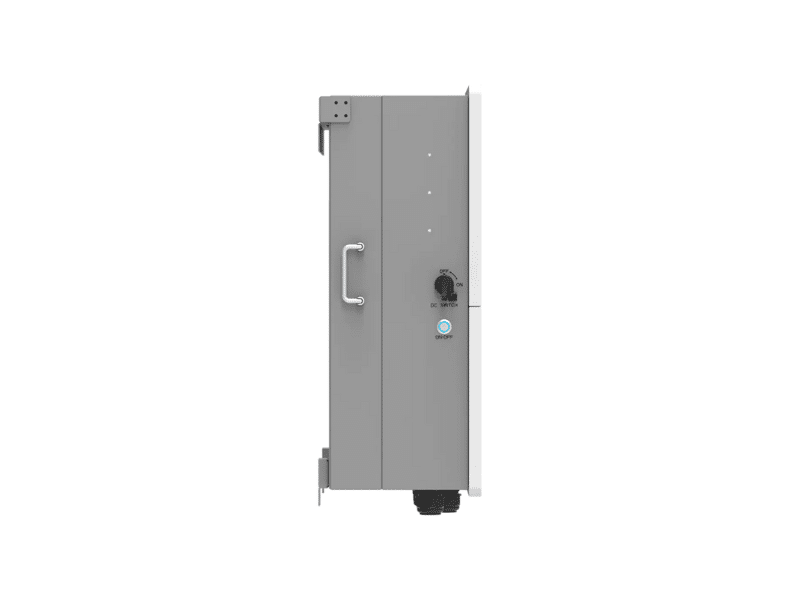

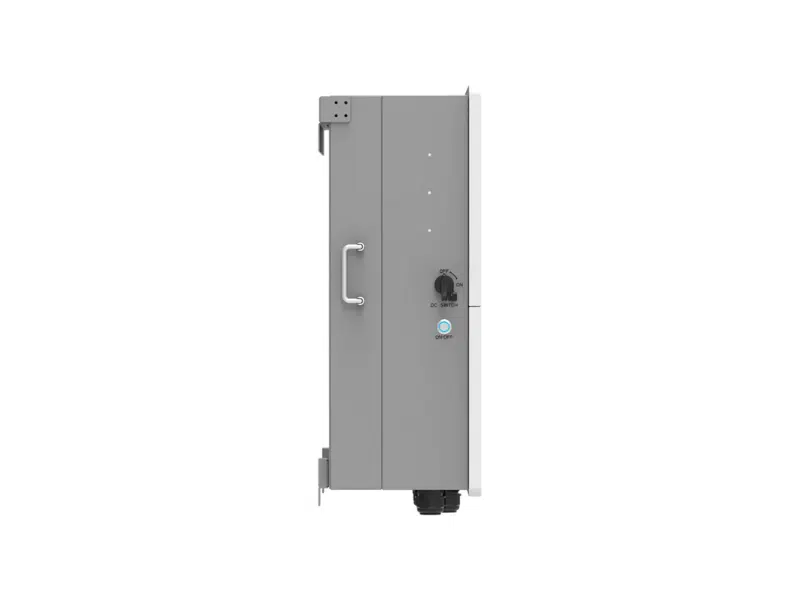

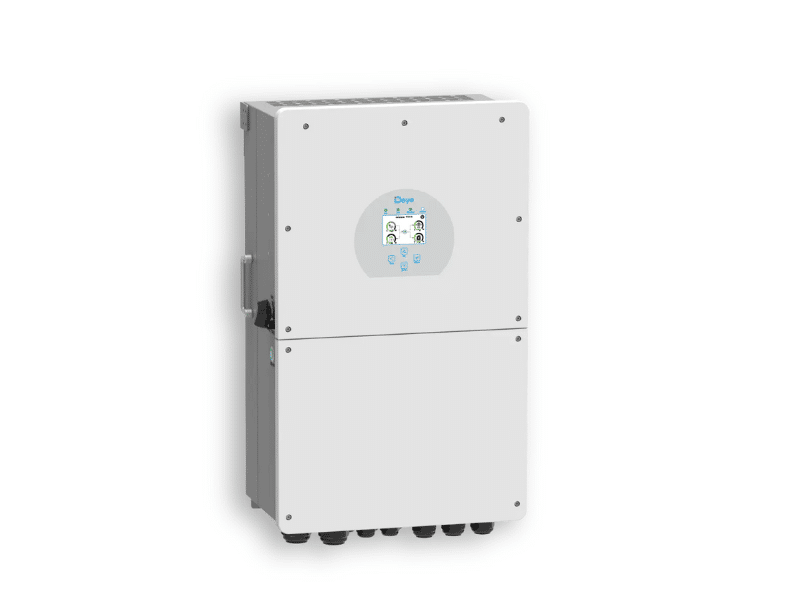

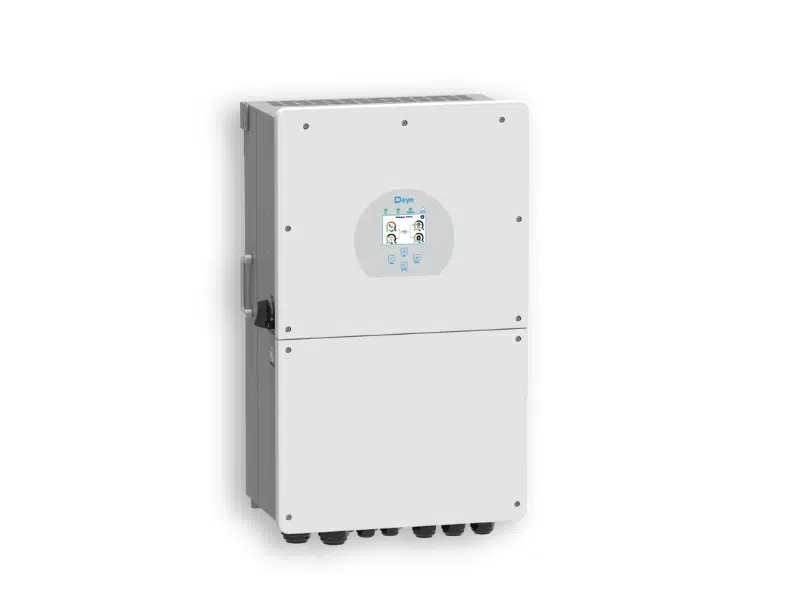

Description Deye 16kVA/16kW 48V Single Phase Hybrid Inverter SUN-16K-SG01LP1-EU General Specifications Rated Output Power: 16 kVA / 16 kW Battery Voltage: 48V (Lead-acid or Lithium-ion) Battery Voltage Range: 40–60 VDC Max. Charging Current: 290A Max. Discharging Current: 290A Number of Battery Inputs: 2 Topology: Transformerless (Non-isolated) Output Waveform: Pure sine wave PV Input Data Max. PV Access Power: 32,000 W Max. PV Input Power: 25,600 W Max. PV Input Voltage: 500 VDC Start-up Voltage: 125 V MPPT Voltage Range: 150–425 VDC Rated PV Input Voltage: 370 VDC No. of MPPT Trackers / Strings: 3 / (2+2+2) Max. Operating PV Input Current: 26 A + 26 A + 26 A Max. Short-Circuit Current: 44 A + 44 A + 44 A AC Input / Output Data Rated AC Power (On-grid/Off-grid): 16,000 W Max. AC Power: 17,600 W Rated AC Current (Output): 72.7 A / 69.6 A Max. AC Current (Output): 80 A / 76.5 A Max. Continuous AC Passthrough (grid → load): 100 A Peak Power (Off-grid): 2 × rated power (10s) Power Factor Adjustment: 0.8 leading to 0.8 lagging Rated Voltage: 220/230 V AC (±15%) Rated Frequency: 50 Hz / 60 Hz (±5 Hz) Grid Connection Form: L + N + PE THDi: <3% DC Injection Current: <0.5% Efficiency Max. Efficiency: 97.6% Euro Efficiency: 96.5% MPPT Efficiency: >99% Features & Protection Display: Colorful touch LCD IP Rating: IP65 (indoor/outdoor use) Monitoring: GPRS / WiFi / Bluetooth / 4G / LAN (optional) Integrated Protection: DC reverse polarity, AC overcurrent & overvoltage, thermal, DC/AC short-circuit, anti-islanding, insulation impedance detection, residual current detection Surge Protection: Type II (DC), Type III (AC) Parallel Operation: Up to 16 units (on-grid or off-grid) Battery Management: 6 programmable time periods for charging/discharging Generator Support: Compatible with diesel generator input Design & Usability Cooling: Intelligent air cooling Noise: <50 dB Ingress Protection: IP65 Cabinet Size (W×H×D): 464 × 763 × 282 mm (excluding connectors & brackets) Weight: 52 kg Operating Temperature: –40°C to +60°C (derating above 45°C) Altitude: ≤2000 m Warranty: 5 Years / 10 Years (site-dependent) Deye 16kVA/16kW 48V Single Phase Hybrid Inverter SUN-16K-SG01LP1-EU Massive PV Capacity: Supports up to 32kWp PV access / 25.6kWp PV input with triple MPPT trackers for maximum solar utilisation. High Charge/Discharge Current: Handles up to 290A, ideal for large lithium battery banks and heavy daily cycling. Pure Sine Wave Output: Delivers stable 230Vac power, safe for sensitive electronics and industrial loads. Seamless Hybrid Operation: Works with solar, grid, or diesel generator input with automatic switchover. Parallel Operation: Scalable up to 16 units for higher power needs, both on-grid and off-grid. Smart Battery Management: Programmable 6 charge/discharge periods with support for lead-acid and lithium batteries. Advanced Protections: Built-in surge, short-circuit, thermal, reverse polarity, residual current, and anti-islanding protections. Remote Monitoring: WiFi/4G/GPRS/LAN options with colourful touch LCD interface. Rugged Design: transformerless high-efficiency design (>97.6%) with IP65 rating for indoor/outdoor installations. Generator Compatibility: Supports generator integration for extended backup.
