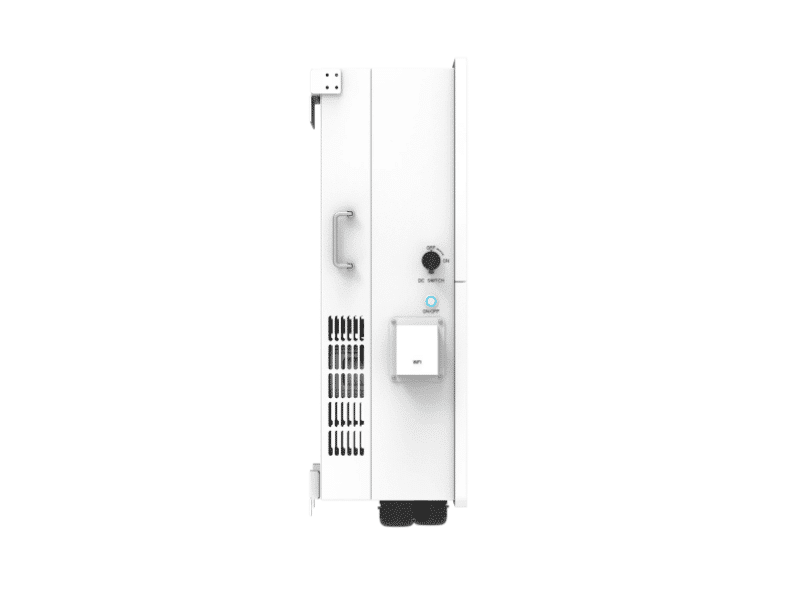

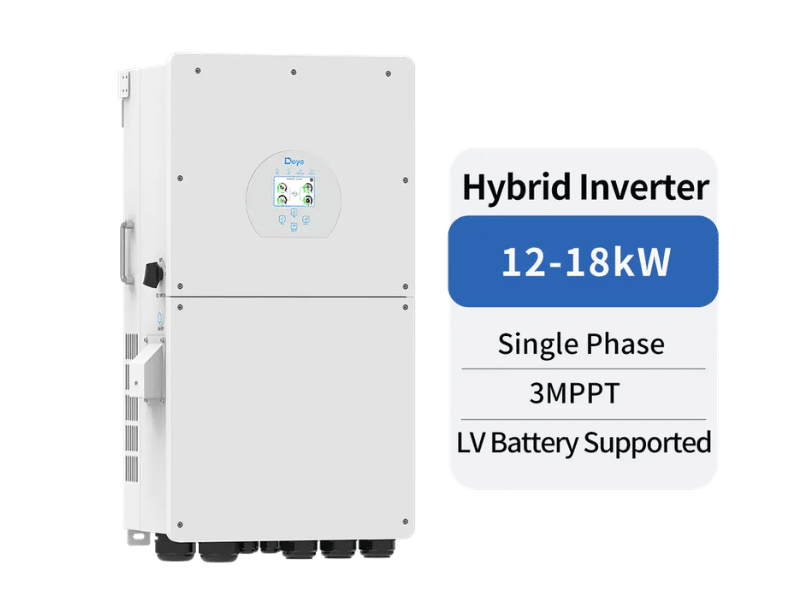

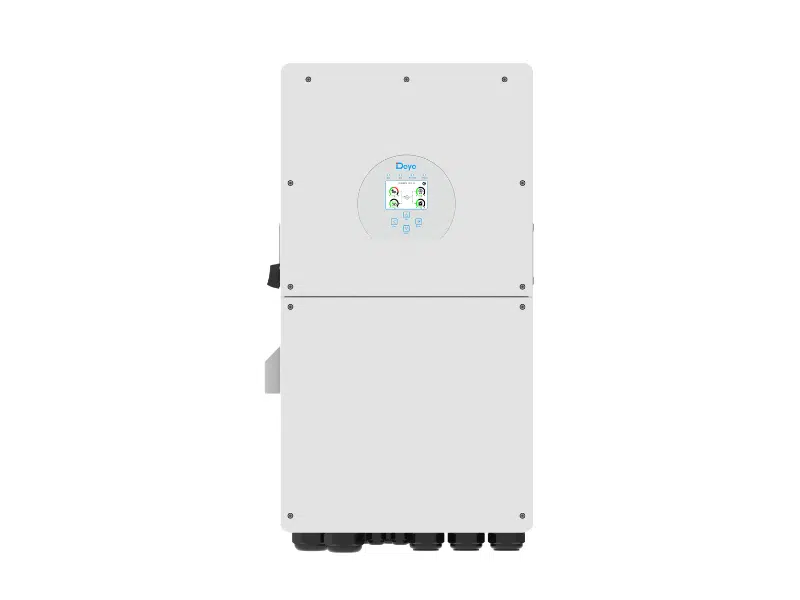

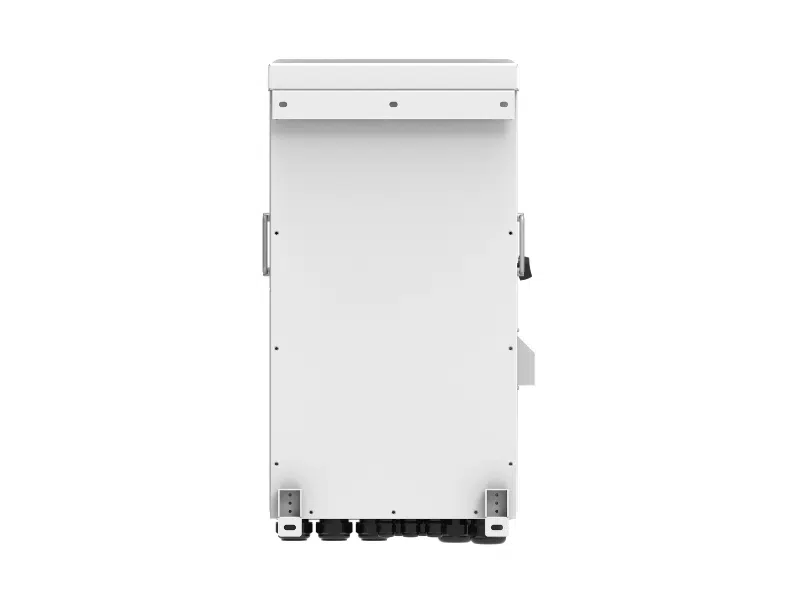

Buy new Deye 16kVA/16kW 48V Single Phase Hybrid Inverter SUN-16K-SG01LP1-EU-AM3-P; 3 MPPT, 32kWp/25.6kWp PV Access/Input, 500Vdc, 150–425V MPPT Range, 290A Charge/Discharge, Dual Battery Input, WiFi/4

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 10,290,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

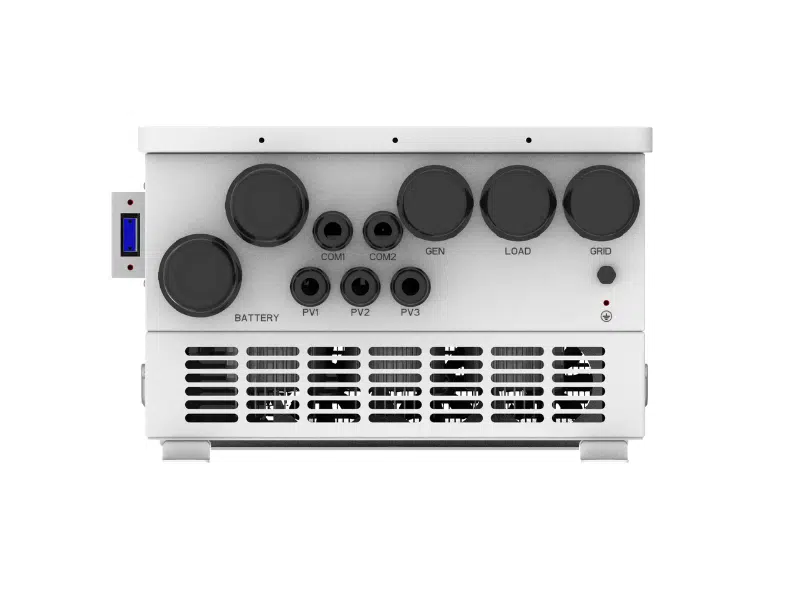

Description Deye 16kVA/16kW 48V Single Phase Hybrid Inverter SUN-16K-SG01LP1-EU-AM3-P Datasheet Battery Specifications Battery Type: Lithium-ion or Lead-acid Battery Voltage Range: 40–60V Max Charging Current: 290A Max Discharging Current: 290A Charging Strategy: Self-adaptive to BMS Number of Battery Inputs: 2 PV / Solar Input Specifications Max PV Access Power: 32,000W Max DC Input Power: 25,600W Max PV Input Voltage: 500Vdc Start-up Voltage: 125V MPPT Voltage Range: 150–425V Rated PV Input Voltage: 370V MPPT Trackers: 3 Strings per MPPT: 2 + 2 + 2 Max Operating PV Input Current: 36 + 36 + 36A Max Input Short Circuit Current: 54 + 54 + 54A AC Output Specifications Rated Output Power: 16,000W Max Apparent Power: 17,600VA Rated Output Voltage: 220/230V (Single Phase) Rated Frequency: 50/60Hz Max Continuous AC Passthrough: 100A Peak Power (Off-grid): 2× rated power for 10 seconds Power Factor Adjustment Range: 0.8 leading to 0.8 lagging Hybrid & System Integration Supports solar, battery, grid and generator integration Stores energy from diesel generator AC coupling support for retrofitting existing solar systems Parallel operation up to 16 units (on-grid and off-grid) Six programmable battery charge and discharge time periods Protection & General Specifications Ingress Protection Rating: IP65 Surge Protection: Type II (DC and AC) Anti-islanding protection DC reverse polarity protection AC overcurrent and short-circuit protection Residual current detection Cooling Method: Intelligent air cooling Noise Level: <55 dB Operating Temperature Range: -40°C to +60°C Permissible Altitude: Up to 3000m Monitoring & Communication Monitoring Options: WiFi, 4G, Bluetooth, LAN (optional modules) Communication Interfaces: RS485, RS232, CAN Deye 16kVA/16kW 48V Single Phase Hybrid Inverter highlights 16kW single-phase hybrid inverter for high-load residential and commercial systems. 3 MPPT trackers supporting up to 6 PV strings. 32kWp PV access capacity with 25.6kWp maximum DC input power. 290A maximum battery charge and discharge current. Dual battery inputs for higher storage flexibility. 48V battery system compatible with lithium-ion and lead-acid batteries. 500Vdc maximum PV input voltage for longer string design. 150–425V MPPT operating range for stable solar tracking. Parallel capability up to 16 units for system expansion. IP65-rated enclosure with WiFi/4G remote monitoring support.
