Description Deye 30kVA/30kW High Voltage Three-Phase Hybrid Solar Inverter SUN-30K-SG01HP3-EU-BM3 Technical Specifications Model: SUN-30K-SG01HP3-EU-BM3 Rated Power: 30kVA / 30kW (33kVA max) PV Input Power: 47,840W Max PV Voltage: 1000V MPPT Voltage Range: 150–850V MPPT Trackers/Strings: 3 / 6 Battery Input: High Voltage Lithium-ion, 160–800V, 2 inputs, 100A charge/discharge Rated Grid Voltage: 220/380V, 230/400V (3-phase + N + PE) Efficiency: Max 97.6%, Euro 97.0%, MPPT >99% Protection: DC reverse polarity, AC overcurrent, overvoltage, short-circuit, thermal, anti-islanding, SPD Type II (DC/AC) Monitoring: WiFi, GPRS, Bluetooth, 4G, LAN (optional) Interfaces: RS485 / RS232 / CAN Size & Weight: 527 × 894 × 294 mm, 80kg Ingress Protection: IP65

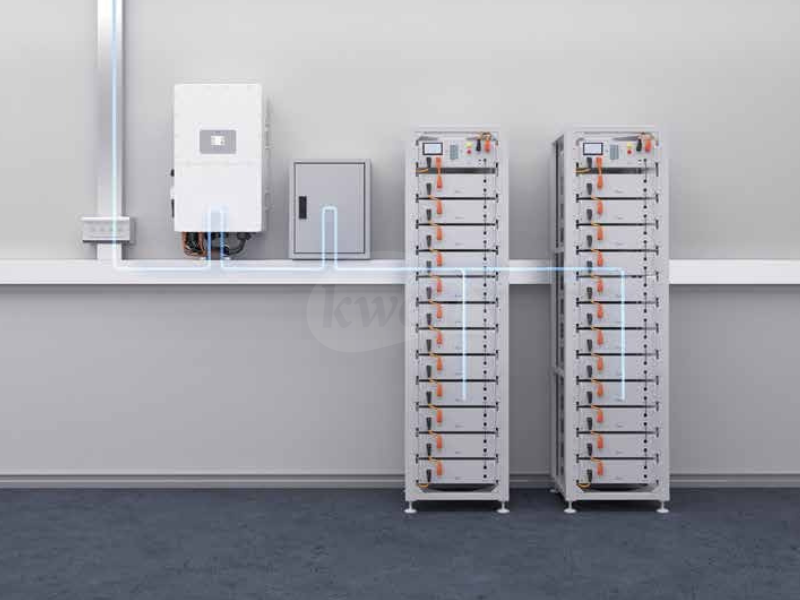

Deye 30kVA/30kW High Voltage Three-Phase Hybrid Solar Inverter Commercial-Grade Performance: 30kVA three-phase hybrid inverter, built for hotels, schools, hospitals, and industrial operations. High Voltage Battery Compatible: Works with lithium-ion batteries in the 160–800V range for maximum efficiency and scalability. Hybrid Power Flexibility: Combines solar, grid, and generator seamlessly for reliable supply. Scalable Power: Connect up to 10 units in parallel for large-scale systems. Seamless Operation: Automatic switchover and support for 100% unbalanced load. Surge Support: Handles up to 1.5× rated power (45kW) for 10s. Smart Scheduling: Up to 6 charging/discharging periods to optimise energy costs. Retrofit Ready: AC coupling allows integration into existing solar systems. Durability Assured: IP65 protection, -40°C to +60°C range, intelligent air cooling
