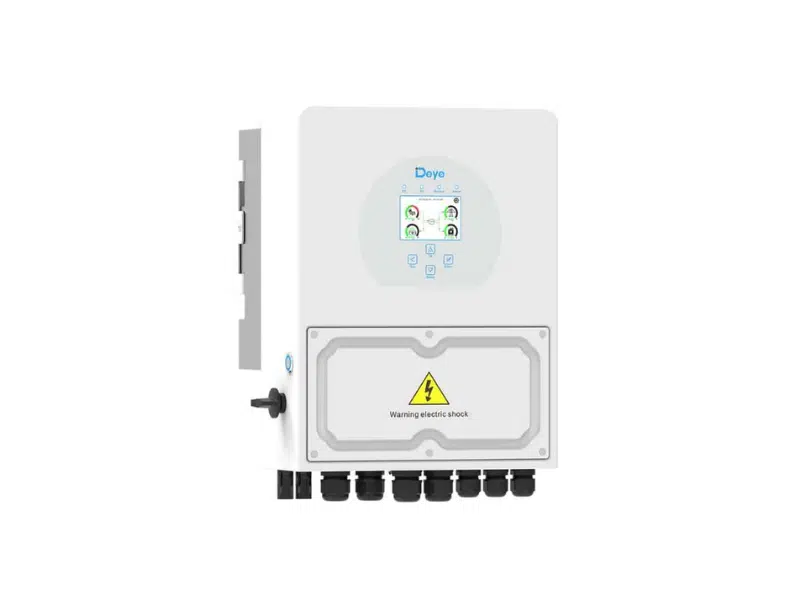

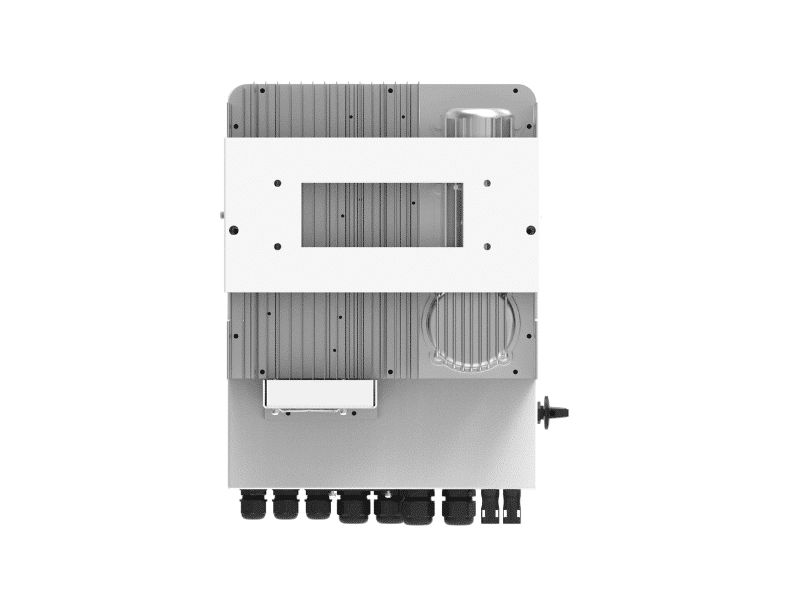

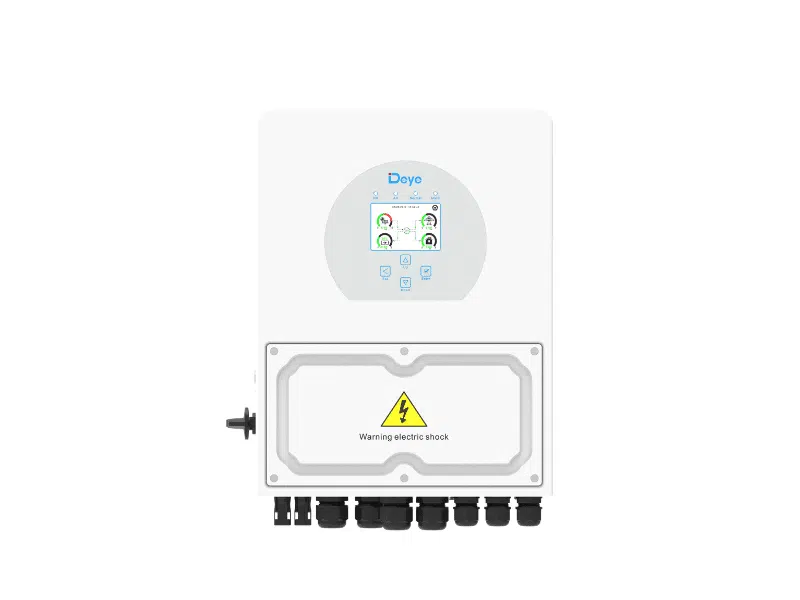

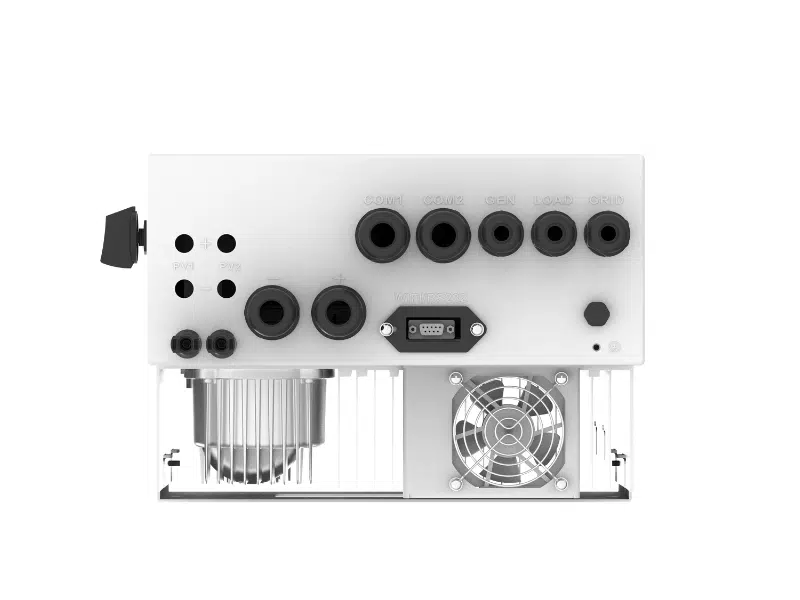

Buy new Deye 5kVA/5kW 48V Single Phase Hybrid Inverter SUN-5K-SG04LP1-EU; 2 MPPT, 10kWp/8kWp PV Access/Input, 500Vdc, 150–425V MPPT Range, 120A Charge/Discharge, WiFi/4G Monitoring, IP65 in Uganda - -

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 3,890,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description Deye 5kVA/5kW 48V Single Phase Hybrid Inverter SUN-5K-SG04LP1-EU Datasheet Battery Specifications Battery Type: Lithium-ion or Lead-acid Battery Voltage Range: 40–60V Max Charging Current: 120A Max Discharging Current: 120A Charging Strategy: Self-adaptive to BMS Number of Battery Inputs: 1 PV / Solar Input Specifications Max PV Access Power: 10,000W Max PV Input Power: 8,000W Max PV Input Voltage: 500Vdc Start-up Voltage: 125V MPPT Voltage Range: 150–425V Rated PV Input Voltage: 370V MPPT Trackers: 2 Strings per MPPT: 1 + 1 Max Operating PV Input Current: 13 + 13A Max Input Short Circuit Current: 17A AC Output Specifications Rated Output Power: 5,000W Max Apparent Power: 5,500VA Rated Output Voltage: 220/230V (Single Phase) Rated Frequency: 50/60Hz Max Continuous AC Passthrough: 35A Peak Power (Off-grid): 2× rated power for 10 seconds Power Factor Adjustment Range: 0.8 leading to 0.8 lagging Hybrid & System Integration Supports solar, battery, grid and generator integration Stores energy from diesel generator AC coupling support for retrofitting existing solar systems Parallel operation up to 16 units Six programmable battery charge and discharge time periods Protection & General Specifications Ingress Protection Rating: IP65 Surge Protection: Type II (DC and AC) Anti-islanding protection DC reverse polarity protection AC overcurrent and short-circuit protection Residual current detection Cooling Method: Natural Cooling Noise Level: <45 dB Operating Temperature Range: -40°C to +60°C Permissible Altitude: Up to 2000m Weight: 17kg Dimensions: 330 × 433 × 228 mm Deye 5kVA/5kW 48V Single Phase Hybrid Inverter SUN-5K-SG04LP1-EU highlights 5kW single-phase hybrid inverter for residential and small business systems. Dual MPPT design for flexible solar array configuration. 10kWp PV access capacity with 8kWp maximum DC input power. 120A maximum battery charge and discharge current. 48V battery system compatible with lithium-ion and lead-acid batteries. 500Vdc maximum PV input voltage. 150–425V MPPT operating range. Parallel capability up to 16 units. Generator integration and AC coupling support. IP65-rated enclosure for indoor and outdoor installation.
