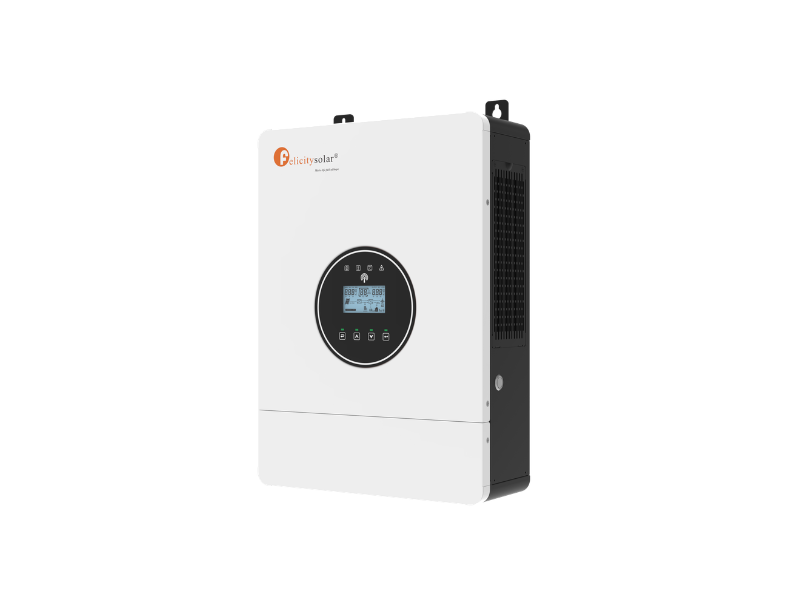

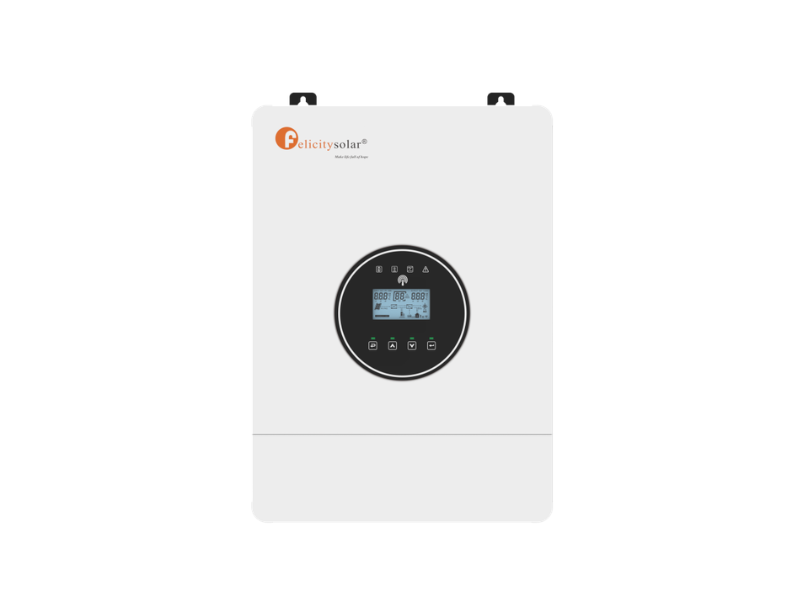

Buy new Felicity 4kVA/4kW 24V Hybrid Inverter IVEM4024-II; 6.2kWp/500Voc/90–500VDC/120A Built-in MPPT Charge Controller, Battery Charger, 230Vac Pure Sine Wave Output, Built-in WiFi for App Monitoring

Description Felicity 4kVA/4kW 24V Hybrid Inverter IVEM4024-II AC / Inverter Specifications Rated Output Power: 4000VA Rated Output Power (W): 4000W Nominal DC Input Voltage: 24V Nominal Output Voltage: 230Vac Nominal Output Frequency: 50Hz / 60Hz (Auto detect) AC Input Input Voltage: 230Vac (Selectable utility or generator) Low Line Voltage Disconnect: 184Vac ±7V (UPS) 154Vac ±7V (Appliances) Low Line Voltage Reconnect : 194Vac ±7V (UPS) 164Vac ±7V (Appliances) High Line Voltage Disconnect: 264Vac ±7V High Line Voltage Reconnect: 254Vac ±7V Low Line Frequency Disconnect: 45Hz / 55Hz Low Line Frequency Reconnect: 47Hz / 53Hz High Line Frequency Disconnect: 55Hz / 65Hz High Line Frequency Reconnect: 53Hz / 63Hz Performance Output Waveform: Pure sine wave Transfer Time: 10ms (UPS mode) 20ms (Appliances mode) Efficiency (Line Mode): >95% (Rated load, battery full charged) Efficiency (Battery Mode): 93% (Rated load) Parallel Capability: No Overload Protection (SPS load): 105%–120% load: 5 min 120%–150% load: 10 sec Surge Rating: 2 × rated power for 5 sec Output Short Circuit Protection: Yes Cold Start Voltage: 22V Battery Protection Low Battery Alarm: 22.5V Low Battery Recovery: 25.5V Low DC Input Shutdown: 21V High DC Input Alarm & Fault: 31V / 34V Solar (MPPT) Specifications Max. PV Array Power: 6200W PV Working Voltage Range: 90V – 500V Max. PV Open Circuit Voltage (Voc): 500V Max. Solar Charging Current: 120A Max. Charging Current (PV + Grid): 120A Max. Input Current: 27A Max. Solar Charging Current (per MPPT): 120A Max. PV Input Power: 6200W Max. PV Short Circuit Current: 27A Utility Charger Specifications Nominal Input Voltage: 230Vac Input Voltage Range: 90–280Vac (Appliances mode) 170–280Vac (UPS mode) Max. Charge Current: 0–120A (Adjustable) Overcharge Protection: Yes Charging Algorithm 3-Stage Charging: Bulk (Constant current stage) Absorption (Constant voltage stage) Float (Constant voltage stage) Battery Type Settings AGM: 28.8V (Boost) / 27V (Float) Flooded: 29.2V (Boost) / 27V (Float) User-defined: Adjustable Lithium: Adjustable, up to 31V Pass Through Without Battery Max. Bypass Overload Current: 30A Max. Inverter/Rectifier Current: 30A General Specifications Operating Temperature: -10°C to 50°C Storage Temperature: -15°C to 60°C Humidity: 5%–95% (Non-condensing) Net Weight: 11.4 kg Gross Weight: 13 kg Product Size (D×W×H): 408 × 310 × 110 mm Package Size (D×W×H): 530 × 375 × 178 mm Felicity 4kVA/4kW 24V Hybrid Inverter IVEM4024-II 4kVA / 4kW rated output capacity 24V DC battery system 6.2kWp maximum PV input capacity 500V maximum PV open circuit voltage (Voc) 90–500VDC MPPT operating range 120A built-in MPPT solar charge controller 230Vac pure sine wave output Up to 93% inverter efficiency (battery mode) 10ms UPS transfer time / 20ms appliances mode Built-in WiFi for real-time app monitoring
