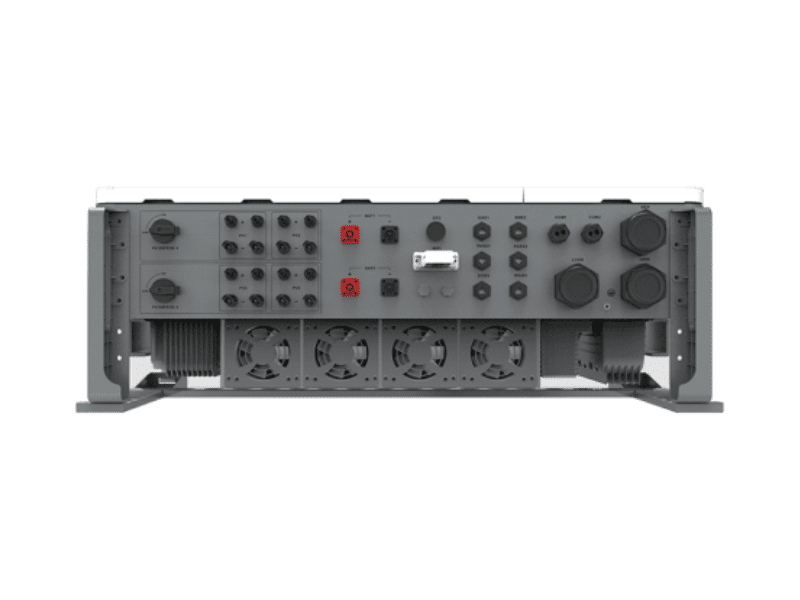

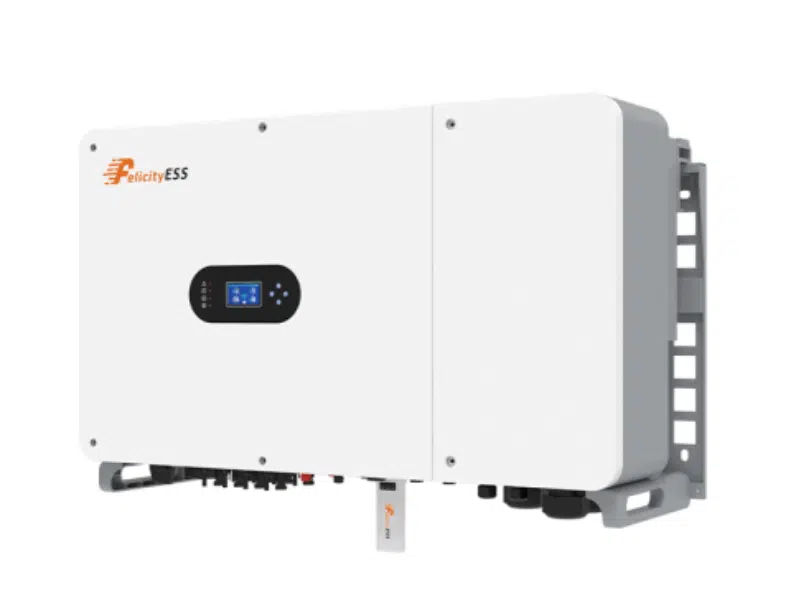

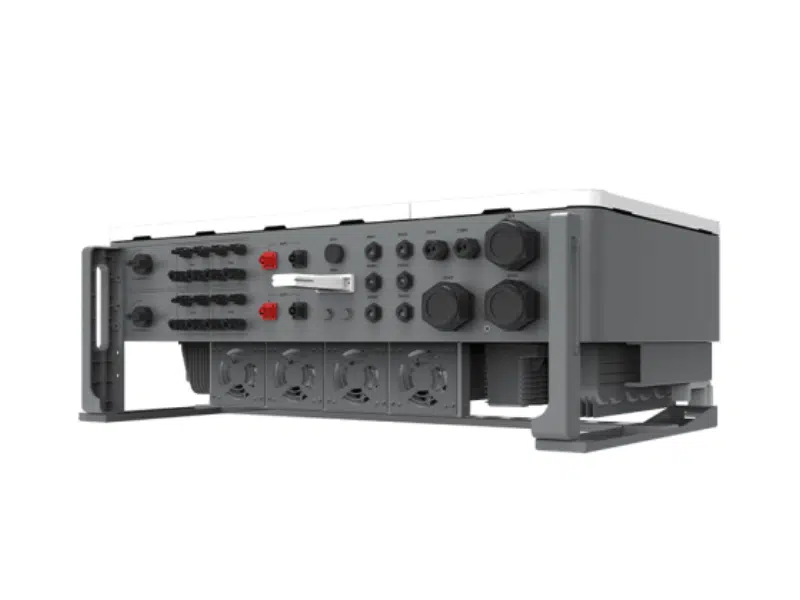

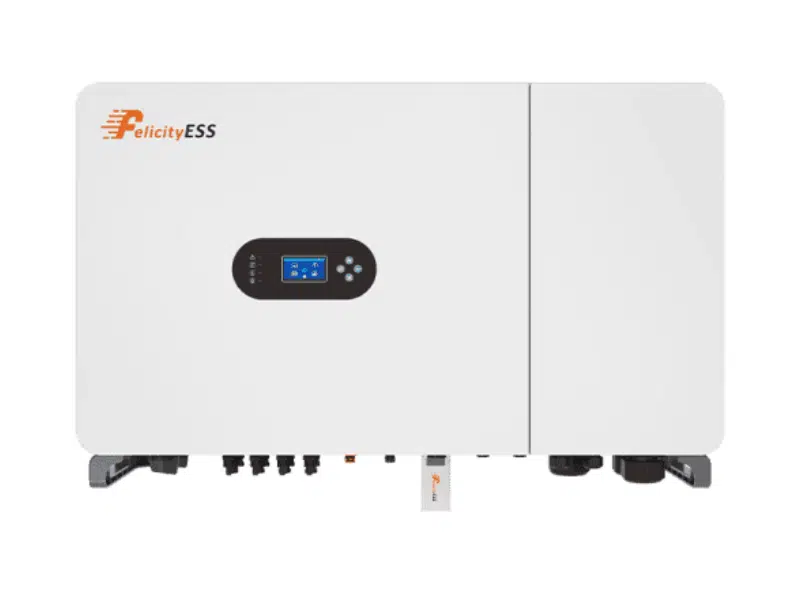

Buy new Felicity 50kVA/50kW 3-Phase High Voltage Hybrid Solar Inverter T-REX-50KHP3G01; 75kWp PV Input, 180-750V Battery Range, Dual MPPT, IP65, Smart Energy Management, Remote Monitoring via Wi-Fi in

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 14,900,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description Felicity 50kVA/50kW 3-Phase High Voltage Hybrid Solar Inverter T-REX-50KHP3G01 Technical Specifications General Model: T-REX-50KHP3G01 Brand: Felicity Solar Type: Three-phase high voltage hybrid inverter Rated Power Output: 50kW / 50kVA Maximum Efficiency: 98.4% European Efficiency: 97.6% Power Factor: 0.8 lag – 0.8 lead THD: <3% PV Input (DC) Maximum PV Power: 75kWp Maximum PV Voltage: 1000V DC MPPT Voltage Range: 250–850V DC Number of MPPTs: 2 Input Current per MPPT: 30A Maximum PV Short Circuit Current: 40A Battery (DC) Battery Voltage Range: 180–750V DC Maximum Charge/Discharge Current: 120A Compatible Battery Types: Lithium-ion / Lead-acid AC Output (Grid & Backup) Nominal Output Voltage: 400V AC (3-phase, 4-wire + PE) Nominal Frequency: 50Hz / 60Hz Switch Time (Grid to Battery): ≤10ms Backup Output Power: 50kW continuous Communication & Control Interfaces: RS485, CAN, Wi-Fi, optional Ethernet Monitoring: Smart Cloud platform and mobile app Energy Management System (EMS): Peak shaving, zero export, and time-of-use scheduling Protection & Safety Built-in SPDs (Type II) for AC/DC Anti-Islanding (EN 62116 / VDE 0126-1-1) Insulation & residual current protection Comprehensive electronic protection Design & Installation Cooling: Intelligent forced air cooling Enclosure Protection: IP65 (outdoor installation) Operating Temperature: –25°C to +60°C Relative Humidity: 0–95% (non-condensing) Dimensions (W×H×D): 840×600×250mm Weight: 82kg Ideal Applications Commercial and industrial hybrid solar systems Hospitals, schools, and institutions with critical power needs Microgrids and distributed renewable energy systems Factories, workshops, and off-grid estates Felicity 50kVA/50kW 3-Phase High Voltage Hybrid Solar Inverter T-REX-50KHP3G01 Rated Output Power: 50kW / 50kVA three-phase hybrid inverter Maximum PV Input Power: 75kWp (dual MPPT design for optimal solar utilisation) Wide Battery Voltage Range: 180–750V DC, compatible with lithium-ion and lead-acid batteries High Conversion Efficiency: Up to 98.4% overall efficiency, ≥99.9% MPPT efficiency Fast Transfer Time: ≤10ms for uninterrupted power switching Smart Energy Management: Peak shaving, load shifting, zero-export, and grid support modes Real-Time Monitoring: Integrated Wi-Fi, RS485, CAN, and optional Ethernet Comprehensive Protection: Overvoltage, short circuit, overload, reverse polarity, and temperature protection Outdoor Installation Ready: IP65-rated aluminium enclosure with intelligent air cooling German Design Standards: Reliable, efficient, and engineered for long-term performance
