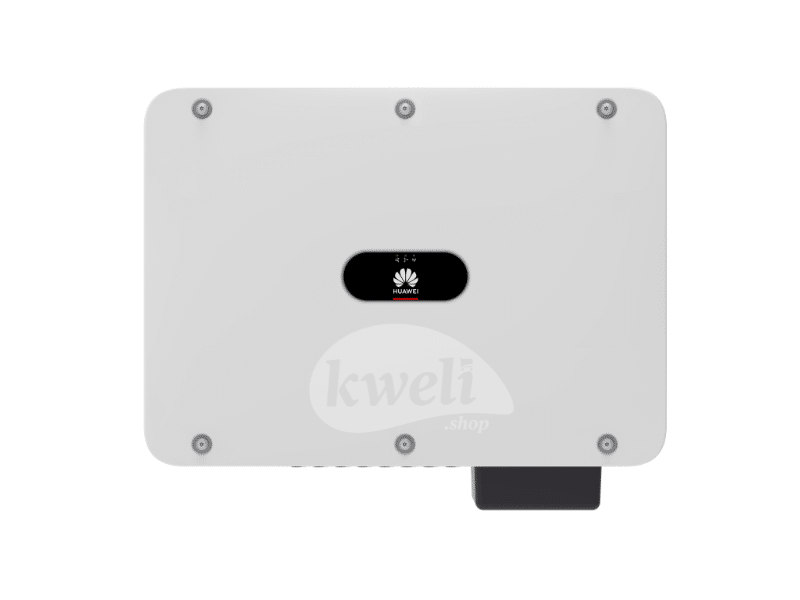

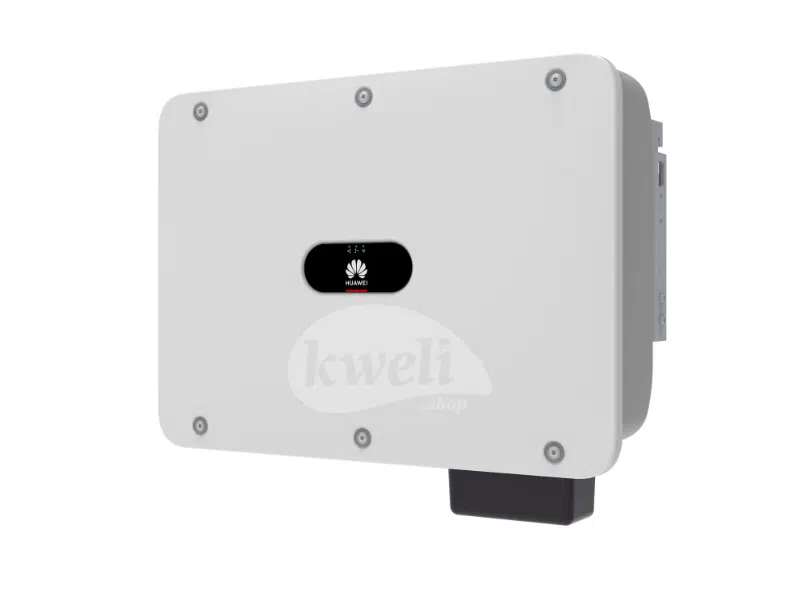

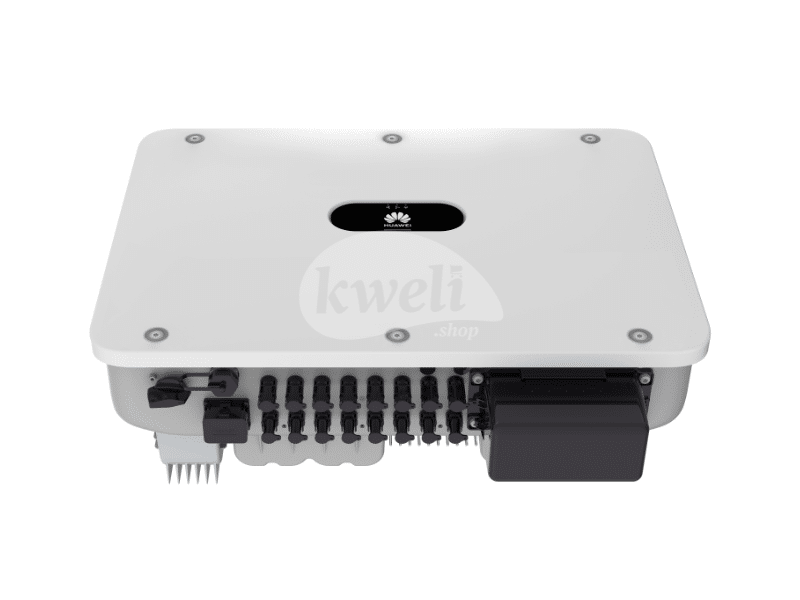

Buy new Huawei 50kW Three-Phase Grid-Tie Solar Inverter SUN2000-50KTL-M3; 4 MPPT, 8 Strings, 30A Max MPPT Current, 55kVA/400-480V AC Output, 98.5% Efficiency, IP66, Smart Monitoring, WLAN/RS485 Compat

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 11,490,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description General Specifications Model : SUN2000-50KTL-M3 Dimensions (W x H x D) : 640 mm × 530 mm × 270 mm Net Weight : 49 kg Operating Ambient Temperature : –25°C to +60°C Relative Humidity : 0%–100% (non-condensing) Cooling Mode : Air cooling Maximum Operating Altitude : 4000 m Storage Temperature : –40°C to +70°C IP Rating : IP66 Topology : Transformerless Input (DC Side) Recommended Maximum Input DC Power : 75,000 W Maximum Input Voltage : 1100 V Minimum Startup Voltage : 200 V Operating Voltage Range : 200–1000 V Full-load MPPT Voltage Range : 530–800 V (380 V AC/400 V AC) 625–850 V (480 V AC) Rated Input Voltage : 600 V (380 V AC/400 V AC) 720 V (480 V AC) Maximum Number of Inputs : 8 Number of MPPT Circuits : 4 Maximum Input Current per MPPT Circuit : 20 A (one PV string) / 30 A (one MPPT circuit) Maximum Short-Circuit Current per MPPT Circuit : 40 A Output (AC Side) Rated Output Power : 50,000 W Maximum Apparent Power : 55,000 VA Maximum Active Power (cosφ = 1) : 55,000 W Rated Output Voltage : 220 V AC/380 V AC 230 V AC/400 V AC 277 V AC/480 V AC 3W+(N)+PE Rated Output Current : 76.0 A (380 V) 72.2 A (400 V) 60.1 A (480 V) Maximum Output Current : 84.0 A (380 V) 79.8 A (400 V) 66.5 A (480 V) Output Voltage Frequency : 50 Hz/60 Hz Power Factor : 0.8 leading to 0.8 lagging Maximum Total Harmonic Distortion (THDi) : < 3% (rated conditions) Efficiency Maximum Efficiency : 98.50% (400 V) 98.71% (480 V) European Efficiency : 98.24% (400 V) 98.40% (480 V) Protection Features Overvoltage Category : PV II / AC III Input DC Switch : Supported Anti-islanding Protection : Supported Output Overcurrent Protection : Supported Input Reverse Connection Protection : Supported PV String Fault Detection : Supported DC Surge Protection : Type II / Type I (optional) AC Surge Protection : Type II Insulation Resistance Detection : Supported Residual Current Monitoring Unit (RCMU) : Supported Display & Communication Display : LED indicators; WLAN + app RS485 Communication : Supported Built-in WLAN : Supported AC MBUS & DC MBUS : Supported AFCI (Arc Fault Circuit Interrupter) : Supported PID Recovery : Supported Rated AC Output Power: 50kW Maximum AC Apparent Power: 55kVA Maximum Efficiency: 98.5% European Efficiency: 98.24% Maximum DC Input Voltage: 1100V MPPT Operating Voltage Range: 200-1000V Full-load MPPT Voltage Range: 530-800V (400V AC) / 625-850V (480V AC) Number of MPPTs: 4 Maximum DC Input Current per MPPT: 30A Maximum Number of PV Strings: 8 Rated Output Voltage: 400V / 480V (Three-phase) Communication Options: RS485, WLAN, MBUS Protection Rating: IP66 (Dustproof & Waterproof) Cooling Method: Smart Air Cooling Arc Fault Protection (AFCI) & PID Recovery: Supported
