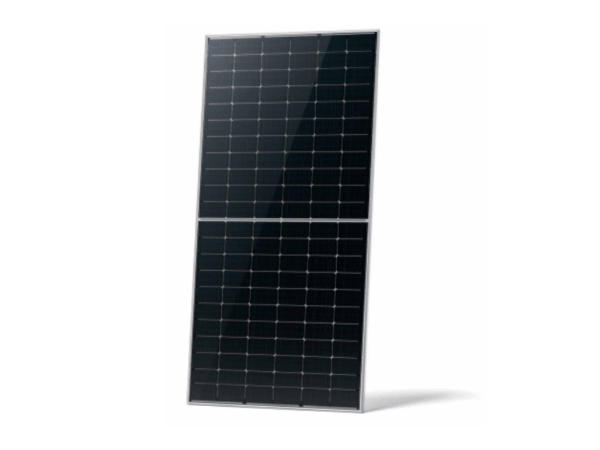

Description Jinko Solar 475-Watt 24V Monocrystalline Solar Panel JKM475N-60H Key Specifications: Maximum Power (Pmax): 475 Wp Module Efficiency: 22.01% Maximum Power Voltage (Vmp): 35.21 V Maximum Power Current (Imp): 13.49 A Open-Circuit Voltage (Voc): 42.54 V Short-Circuit Current (Isc): 14.23 A Mechanical Characteristics: Dimensions: 1903 mm x 1134 mm x 30 mm Weight: 24.2 kg Cell Type: N-type monocrystalline Number of Cells: 120 (6×20) Front Glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass Frame: Anodized aluminium alloy Junction Box: IP68 rated Output Cables: TUV 1×4.0 mm², with lengths of (+): 400 mm and (-): 200 mm (customizable) Performance Under Standard Test Conditions (STC): Operating Temperature Range: -40°C to +85°C Maximum System Voltage: 1000/1500 VDC (IEC) Maximum Series Fuse Rating: 25 A Power Tolerance: 0~+3% Temperature Coefficients: Pmax: -0.29%/°C Voc: -0.25%/°C Isc: +0.045%/°C Certifications and Warranties: Product Warranty: 12 years Linear Power Warranty: 30 years with a degradation rate of 0.40% annually, ensuring 87.4% of the initial power output after 30 years Certifications: IEC61215(2016), IEC61730(2016), ISO9001:2015 (Quality Management System), ISO14001:2015 (Environment Management System), ISO45001:2018 (Occupational Health and Safety Management Systems) Additional Features: Enhanced Mechanical Load: Certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa PID Resistance: Excellent Anti-PID performance through optimized mass-production processes and material control Durability: High resistance to salt mist and ammonia, making it suitable for various environmental conditions Jinko Solar 475-Watt 24V Monocrystalline Solar Panel JKM475N-60H High Module Efficiency : 22.01% efficiency, optimising power generation on limited space. N-type Monocrystalline Cells : Enhanced performance and reduced degradation over time. SMBB (Small Multi-Busbar) Technology : Improves power efficiency by reducing internal resistance losses. Enhanced Durability : Resistant to high wind loads (up to 2400 Pa) and snow loads (up to 5400 Pa). PID Resistance : Anti-Potential Induced Degradation technology for long-term reliability. Advanced Temperature Coefficients : Minimises power loss in higher temperatures (-0.29%/°C for Pmax). Robust Construction : Features IP68-rated junction box, anodized aluminium frame, and anti-reflection coated glass. Extended Warranties : 12-year product warranty and 30-year linear power warranty. Key data: Maximum Power (Pmax): 475 Wp Module Efficiency: 22.01% Maximum Power Voltage (Vmp): 35.21 V Maximum Power Current (Imp): 13.49 A Open-Circuit Voltage (Voc): 42.54 V Short-Circuit Current (Isc): 14.23 A Mechanical Characteristics: Dimensions: 1903 mm x 1134 mm x 30 mm Weight: 24.2 kg Cell Type: N-type monocrystalline Number of Cells: 120 (6×20) Front Glass: 3.2 mm, anti-reflection coating, high transmission, low iron, tempered glass Frame: Anodized aluminium alloy Junction Box: IP68 rated Output Cables: TUV 1×4.0 mm², with lengths of (+): 400 mm and (-): 200 mm (customizable) Performance Under Standard Test Conditions (STC): Operating Temperature Range: -40°C to +85°C Maximum System Voltage: 1000/1500 VDC (IEC) Maximum Series Fuse Rating: 25 A Power Tolerance: 0~+3% Temperature Coefficients: Pmax: -0.29%/°C Voc: -0.25%/°C Isc: +0.045%/°C
