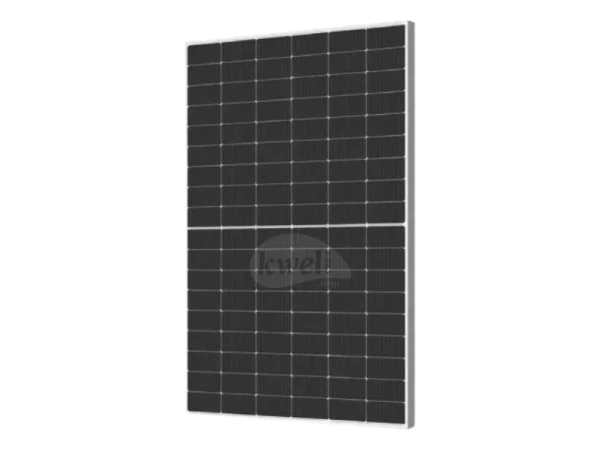

Buy new Jinko Solar 480‑Watt Monocrystalline Solar Panel JKM480N‑60HL4‑V; Voc 42.71V, Vmp 35.38V, Imp 13.57A, Isc 14.31A, Module efficiency of 22.24% in Uganda - - Free Delivery > Long warranty > Life

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 449,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description Jinko Solar 480‑Watt Monocrystalline Solar Panel JKM480N‑60HL4‑V Technical Specifications: Model: JKM480N-60HL4-V Rated Power (Pmax): 480 W Module Efficiency: 22.24% Cell Type: N-Type Monocrystalline Number of Cells: 120 (6×20) Maximum Power Voltage (Vmp): 35.38 V Maximum Power Current (Imp): 13.57 A Open-Circuit Voltage (Voc): 42.71 V Short-Circuit Current (Isc): 14.31 A Power Tolerance: 0 ~ +3% Temperature Coefficient (Pmax): –0.29% / °C Temperature Coefficient (Voc): –0.25% / °C Temperature Coefficient (Isc): +0.045% / °C Nominal Operating Cell Temperature (NOCT): 45 ± 2°C Operating Temperature Range: –40°C ~ +85°C Maximum System Voltage: 1000 / 1500 VDC (IEC) Maximum Series Fuse Rating: 25 A Mechanical Specifications: Dimensions: 1903 × 1134 × 30 mm Weight: 24.2 kg Front Glass: 3.2 mm tempered, anti-reflective, high-transmittance, low-iron glass Frame: Anodised Aluminium Alloy Junction Box: IP68 Rated Output Cables: 4.0 mm²; (+) 400 mm, (–) 200 mm (Customisable) Key Features: High Efficiency: Up to 22.24% module efficiency for greater space savings and output. N-Type Cell Technology: Offers lower degradation, higher performance in low-light conditions, and better reliability over time. SMBB (Small Multi-Busbar) Technology: Enhances light absorption and current collection. HOT 2.0 Technology: Reduces light-induced degradation (LID) and light/elevated temperature-induced degradation (LETID). PID Resistance: Excellent anti-PID performance through advanced materials and process control. Robust Design: Certified to withstand wind loads up to 2400 Pa and snow loads up to 5400 Pa. Extended Lifespan: Backed by a 12-year product warranty and a 30-year linear power warranty (87.4% guaranteed output at year 30). Environmental Durability: High resistance to salt mist, ammonia, and extreme weather conditions. Certifications: IEC61215, IEC61730, ISO9001, ISO14001, ISO45001 Technical Specifications Model: JKM480N-60HL4-V Rated Power (Pmax): 480 W Module Efficiency: 22.24% Cell Type: N-Type Monocrystalline Number of Cells: 120 (6×20) Maximum Power Voltage (Vmp): 35.38 V Maximum Power Current (Imp): 13.57 A Open-Circuit Voltage (Voc): 42.71 V Short-Circuit Current (Isc): 14.31 A Power Tolerance: 0 ~ +3% Temperature Coefficient (Pmax): –0.29% / °C Temperature Coefficient (Voc): –0.25% / °C Temperature Coefficient (Isc): +0.045% / °C Nominal Operating Cell Temperature (NOCT): 45 ± 2°C Operating Temperature Range: –40°C ~ +85°C Maximum System Voltage: 1000 / 1500 VDC (IEC) Maximum Series Fuse Rating: 25 A
