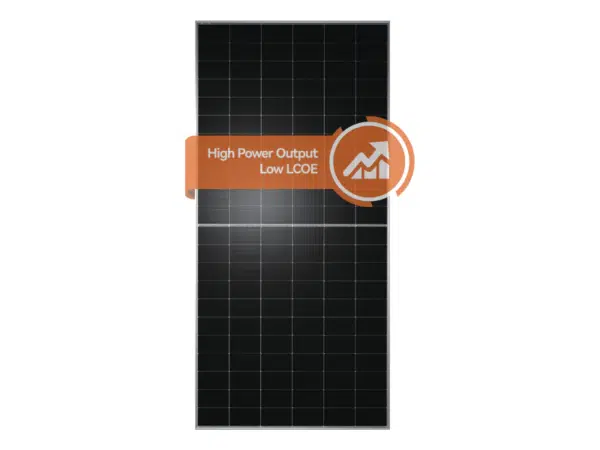

Jinko Solar 590‑Watt Monocrystalline Solar Panel JKM590N‑78HL4 Electrical Characteristics Maximum Power (Pₘₐₓ): 590 W Maximum Power Voltage (Vₘₚ): 44.91 V Maximum Power Current (Iₘₚ): 13.14 A Open‑circuit Voltage (Vₒc): 54.76 V Short‑circuit Current (Iₛc): 13.71 A Module Efficiency (STC): 21.11 % Power Tolerance: 0 % to +3 % Temperature Coefficient of Pₘₐₓ: –0.30 %/°C Temperature Coefficient of Vₒc: –0.25 %/°C Temperature Coefficient of Iₛc: +0.046 %/°C Nominal Operating Cell Temperature (NOCT): 45 ± 2 °C Mechanical Characteristics Cell Type / Count: N‑Type mono‑crystalline, 156 cells (2×78) Dimensions (L × W × H): 2 465 × 1 134 × 35 mm Weight: 34.6 kg Front/Back Glass: 2.0 mm heat‑strengthened Frame: Anodised aluminium alloy Junction Box: IP68 rated Output Cables: 1×4.0 mm² (+): 400 mm, (–): 200 mm System Limits Maximum System Voltage: 1,500 V DC Maximum Series Fuse Rating: 30 A Operating Temperature Range: –40 °C to +85 °C Wind Load Capacity: 2,400 Pa Snow Load Capacity: 5,400 Pa Key Features & Warranty SMBB Technology for enhanced light trapping and current collection Hot 2.0 Technology minimising LID/LETID Excellent anti‑PID performance Bifacial dual‑glass construction for rear‑side yield gain 12-Year product warranty | #KweliGotYou| Order Jinko Solar 590‑Watt Monocrystalline Solar Panel JKM590N‑78HL4; Voc 54.76V, Vmp 44.91V, Imp13.14A, Isc13.71A, Module efficiency of 21.11 % online and enjoy free delivery across Uganda > Long warranty > Lifetime After-sales Support
