Buy new Luminous 230 Watt 12V Monocrystalline Solar Panel in Uganda - - Free Delivery > Long warranty > Lifetime After-sales Support

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 429,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

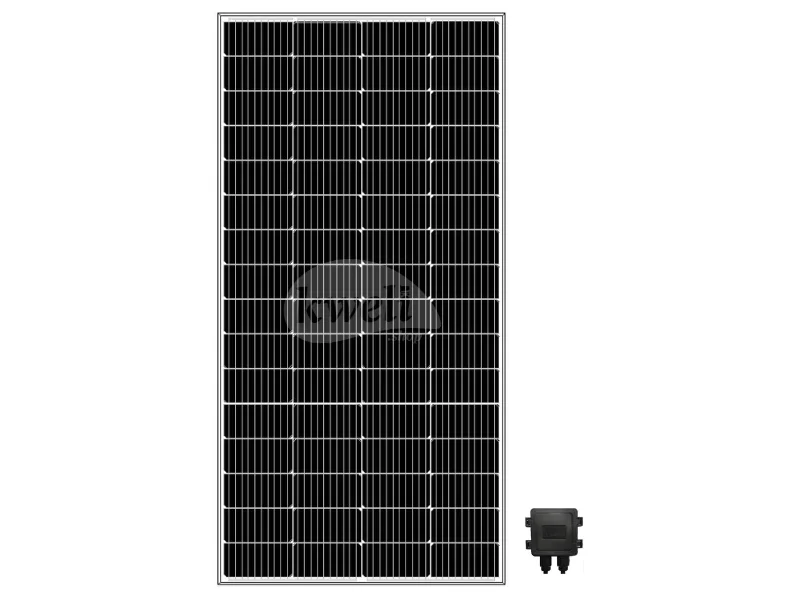

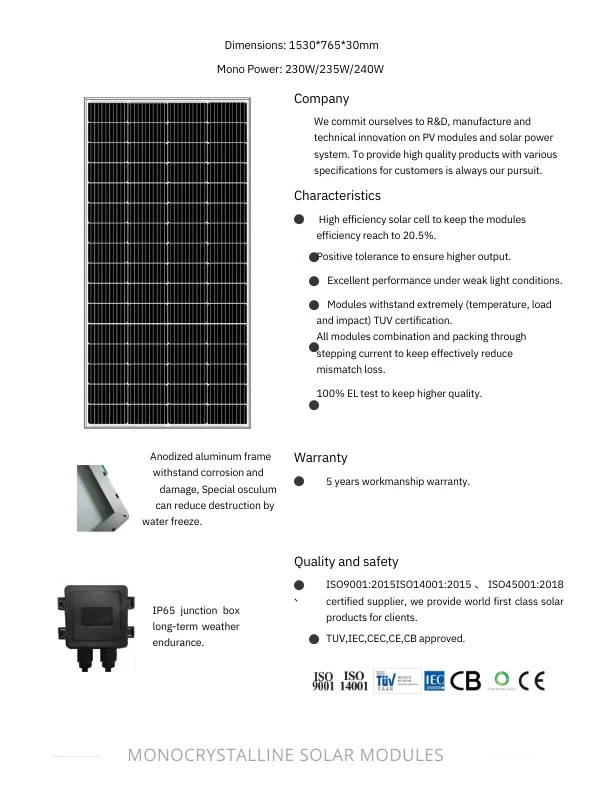

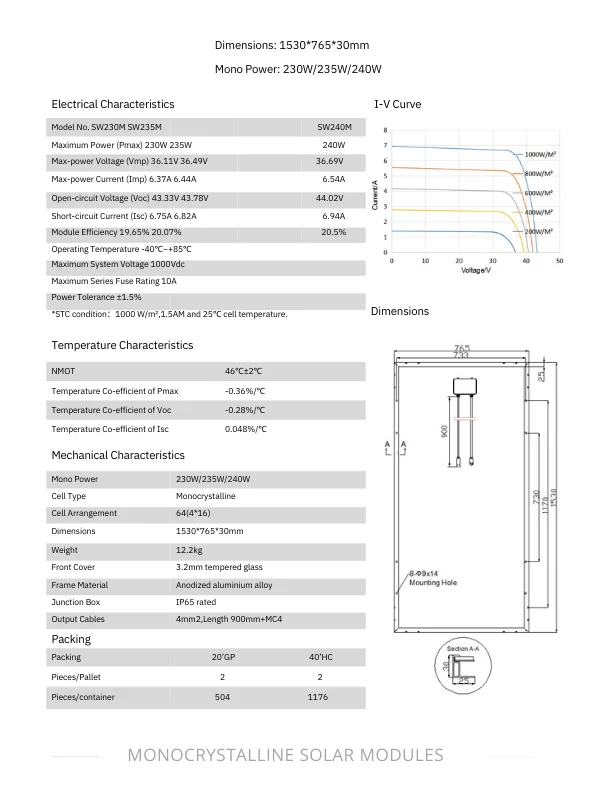

Luminous 230 Watt 12V Monocrystalline Solar Panel High-efficiency solar cell to keep the efficiency of the module reach to 20.5%. Positive tolerance to ensure higher output. Excellent performance under weak light conditions. Modules withstand extreme (temperature, load and impact) TUV certification. All modules combination and packing through stepping current to effectively reduce mismatch loss. 100% EL test to keep higher quality. Technical Specifications Mono Power: 230W/235W/240W Cell Type: Monocrystalline Cell Arrangement: 64(4*16) Dimensions: 1530*765*30mm Weight: 12.2kg Front Cover: 3.2mm tempered glass Frame Material: Anodized aluminium alloy Junction Box: IP65 rated Output Cables: 4mm2, Length 900mm+MC4 Packing Packing: 20’GP 40’HC Pieces/Pallet: 2 2 Pieces/container: 504 1176 Electrical Characteristics Model No: SW230M SW235M SW240M Maximum Power (Pmax): 230W 235W 240W Max-power Voltage (Vmp): 36.11V 36.49V 36.69V Max-power Current (Imp): 6.37A 6.44A 6.54A Open-circuit Voltage (Voc): 43.33V 43.78V 44.02V Short-circuit Current (Isc): 6.75A 6.82A 6.94A Module Efficiency: 19.65% 20.07% 20.5% Operating Temperature: -40℃~+85℃ Maximum System Voltage: 1000Vdc Maximum Series Fuse Rating: 10A Power Tolerance: ±1.5% | #KweliGotYou| Order Luminous 230 Watt 12V Monocrystalline Solar Panel online and enjoy free delivery across Uganda > Long warranty > Lifetime After-sales Support
