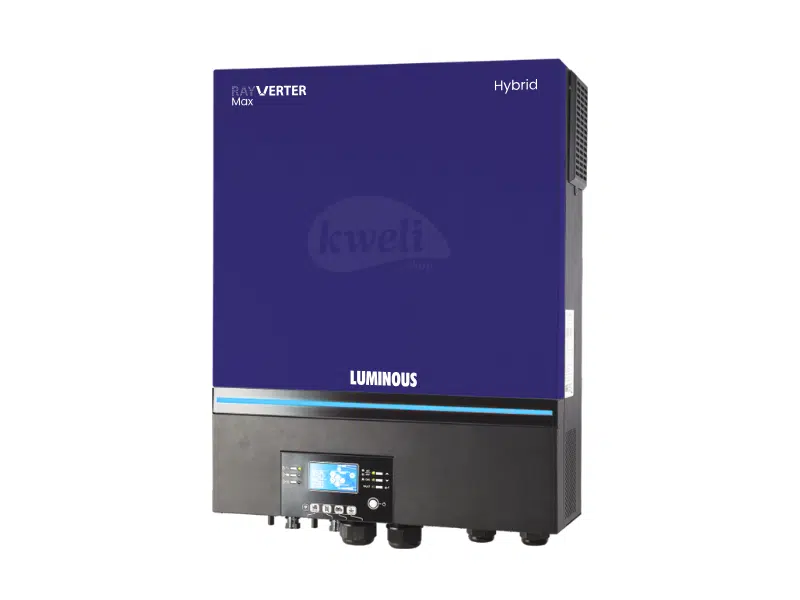

Buy new Luminous Rayverter MAX 11KVA/11KW 48V Hybrid Solar Inverter; Built-in 150A MPPT Solar Charge Controller, 11000W PV Input, 500V Voc, 90-450V MPPT Range, Pure Sine Wave Output in Uganda - - Free

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 4,690,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description Luminous Rayverter MAX 11KVA/11KW 48V Hybrid Solar Inverter Luminous Rayverter MAX 11KVA/11KW 48V Hybrid Solar Inverter Specifications: General Specifications: Rated Power: 11000VA / 11000W AC Output Voltage: 230VAC ± 5% Output Waveform: Pure Sine Wave Frequency Range: 50Hz/60Hz (Auto Sensing) Efficiency (Peak): 93% Transfer Time: 10ms (For Personal Computers) 20ms (For Home Appliances) No Load Power Consumption: <70W Surge Power: 22000VA Battery & Charging: Nominal Battery Voltage: 48VDC Floating Charge Voltage: 54VDC Overcharge Protection: 63VDC Maximum AC Charge Current: 150A Maximum Charge Current: 150A Battery Compatibility: Lead-Acid, GEL, Flooded, Lithium MPPT Solar Charge Controller: MPPT Charge Controller Type: MPPT Maximum PV Input Power: 11000W MPPT Voltage Range: 90-450VDC Maximum PV Open Circuit Voltage (Voc): 500VDC Maximum PV Input Current: 150A Maximum Solar Charge Current: 150A Input & Protection: Selectable Voltage Range: 90-280VAC (For Home Appliances) 170-280VAC (For Personal Computers) Parallel Capability: Yes, up to 6 units Protection Features: Overload Protection Short Circuit Protection Smart Battery Management Cold Start Function Design & Usability: Cooling System: Air Cooling Communication Interface: USB / RS232 / RS485 / WiFi / Dry Contact Operating Temperature: -10°C to 50°C Storage Temperature: -15°C to 60°C Humidity: 5% to 95% Relative Humidity (Non-Condensing) Compliance: CE Certified Physical Specifications: Dimensions (D×W×H): 147.4 × 432.5 × 553.6 mm Net Weight: 18.4 kg
