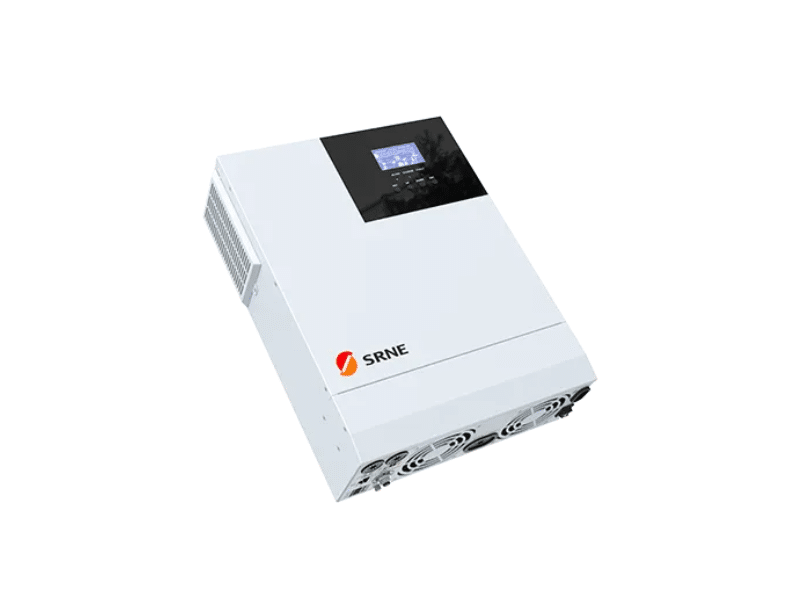

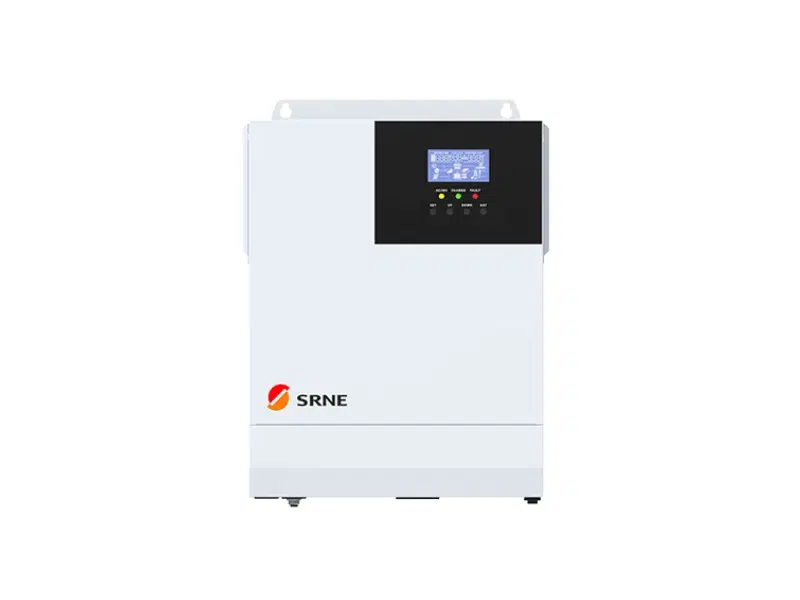

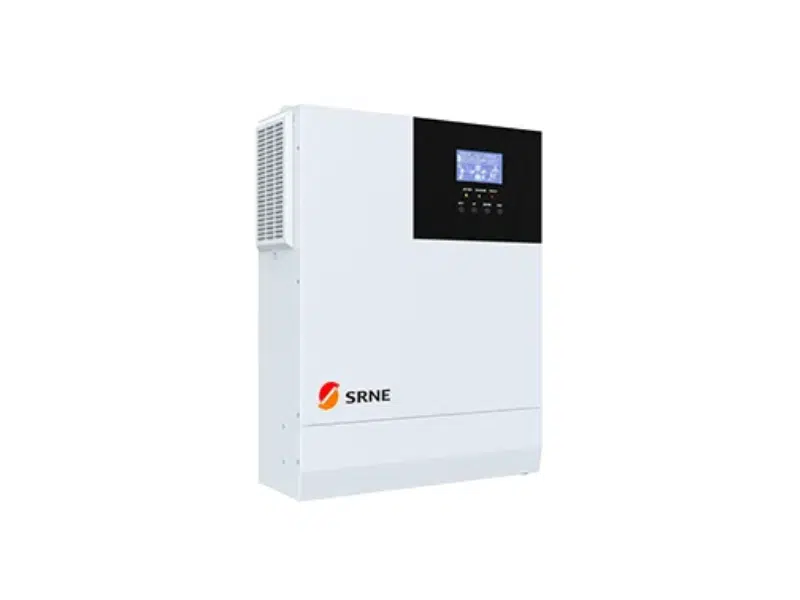

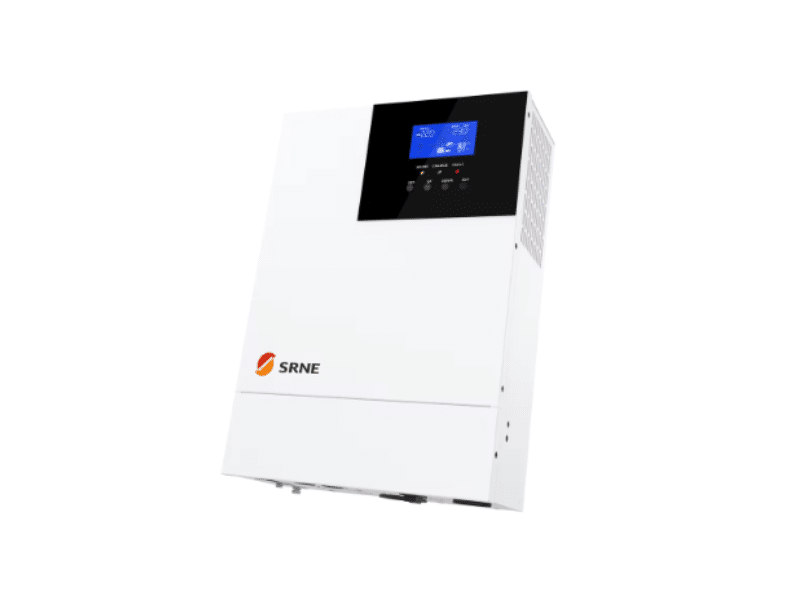

Buy new SRNE 1.5kVA/1.5kW 12V Hybrid Solar Inverter HF1215S60-108; Built-in 60A MPPT Solar Charge Controller 1000Wp/108Voc/15–90V, Pure Sine Wave Output in Uganda - - Free Delivery > Long warranty > L

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 900,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description SRNE 1.5kVA/1.5kW 12V Hybrid Inverter HF1215S60-108 Inverter Specifications Rated Output Power: 1,500W Maximum Peak Power: 3,000VA Output Voltage: 230Vac (Single-Phase) Output Frequency: 50/60Hz Waveform: Pure Sine Wave Switch Time: 10ms (typical) Load Motor Capacity: 1HP Topology: Transformerless Battery Battery Type: Lead-Acid / Lithium / User-Defined Nominal Battery Voltage: 12V Battery Voltage Range: 10.5–15.5Vdc Maximum Solar Charging Current: 60A Maximum AC Charging Current (Grid/Generator): 60A Maximum Hybrid Charging Current: 120A MPPT Solar Charge Controller Number of MPPTs: 1 Maximum PV Array Power: 1000W Maximum PV Input Current: 28.5A Maximum PV Open Circuit Voltage (Voc): 108Vdc MPPT Voltage Range: 15–90Vdc MPPT Tracking Efficiency: 99.9% Grid/Generator Input Input Voltage Range: 170–280Vac Input Frequency Range: 50/60Hz Bypass Overload Current: 9.7A Efficiency & Protection Maximum Inverter Efficiency: 92% Protections: – PV current & power limit – Anti-reverse charging at night – Over/Under voltage (AC & battery) – Output short-circuit protection Design & Connectivity Dimensions (mm): 357.5 × 235 × 103 Weight: 5.5 kg Cooling: Fan Cooling Protection Degree: IP20 (Indoor use only) Operating Temperature: –10°C to 55°C Humidity: 0–100% Communication Ports: RS485 / CAN / USB / Dry Contact Optional Modules: Wi-Fi / GPRS SRNE 1.5kVA/1.5kW 12V Hybrid Solar Inverter HF1215S60-108 Rated Output Power: 1.5kW / 1.5kVA Battery Voltage: 12V (Compatible with Lead-Acid and Lithium batteries) Built-in MPPT Charge Controller: 60A Maximum PV Input Power: 1000W Maximum PV Open Circuit Voltage (Voc): 108Vdc MPPT Voltage Range: 15–90VDC Waveform: Pure Sine Wave Output Maximum AC/Generator Charging Current: 60A Switch Time (UPS Mode): 10ms typical Remote Monitoring Support: RS485, CAN, USB, Dry Contact (Wi-Fi/GPRS optional) 1 year free warranty
