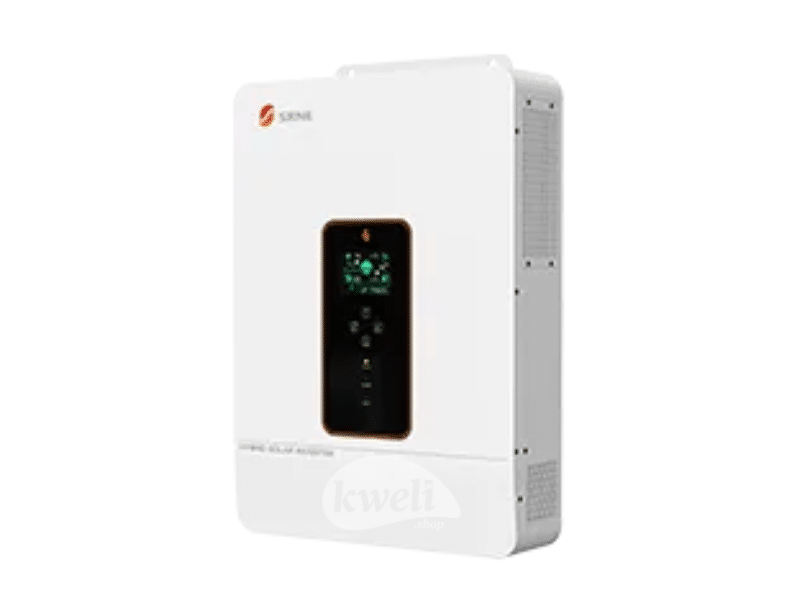

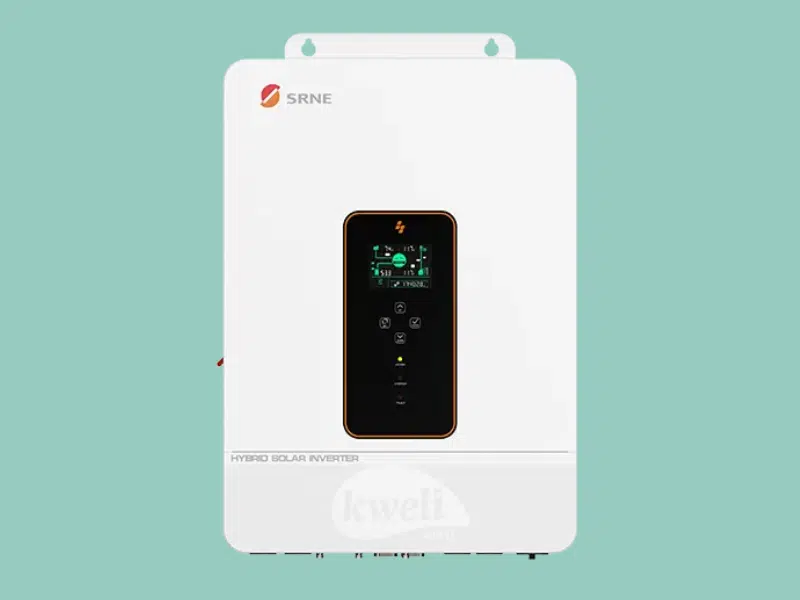

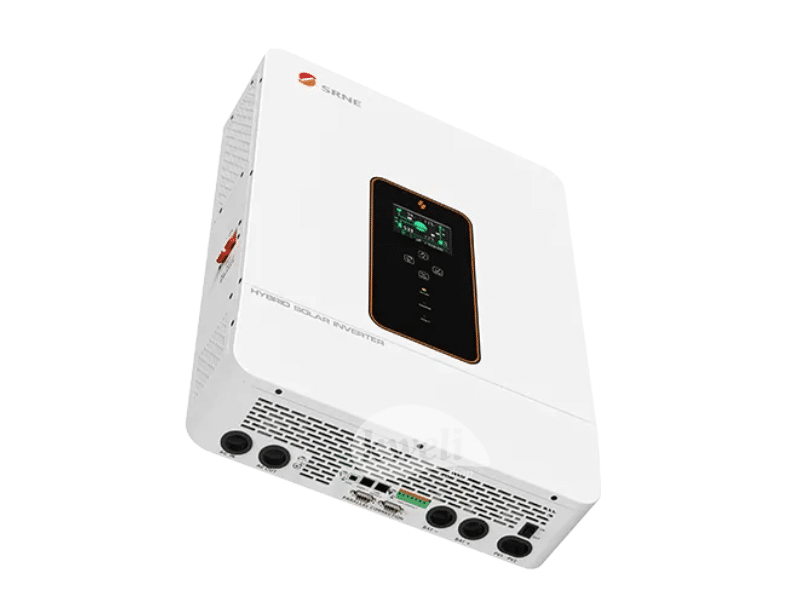

Buy new SRNE 12kVA/12kW 3-Phase Hybrid Solar Inverter ASF48120SH3; Supports up to 18kWp PV, 48V Battery, 230/400V AC Output, Dual MPPT, 800V Voc, 200–650V MPPT Range, 260A Hybrid Charging, Pure Sine W

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 6,490,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description SRNE 12kVA/12kW 3-Phase Hybrid Solar Inverter ASF48120SH3 General Specs: Rated Output Power : 12,000W / 12,000VA Nominal Battery Voltage : 48V Max. PV Input Power : 18,000W (9,000W + 9,000W) Max. PV Input Voltage : 800V + 800V MPPT Voltage Range : 200–650V No. of MPPTs / Strings per MPPT : 2 / 1 AC Output (Off-Grid): Nominal Output Voltage : 230/400V AC (3-phase) Frequency Range : 50Hz / 60Hz Output Waveform : Pure Sine Wave Output Mode : Off-grid (default) / Load Power Without Battery Switch Time : 10ms (typical) Motor Load Capacity : 6HP Battery and Charger: Battery Type : Li-ion / Lead-acid / User-defined Battery Voltage Range : 40–60V Max. Solar Charging Current : 260A Max. Grid/Generator Charging Current : 120A Max. Hybrid Charging Current : 260A Efficiency: MPPT Tracking Efficiency : 99.9% Max. Efficiency : 92% European Efficiency : 97.5% Protection & Features: IP Protection Rating : IP20 (Indoor only) Cooling Method : Air cooling Protection Functions : PV input overvoltage, input current limiting, night reverse current, AC over/undervoltage, battery over/undervoltage, battery overcurrent, short-circuit, overload, heat sink over-temperature Communication Ports : RS485, CAN, USB, Dry Contact External Modules (Optional) : Wi-Fi / GPRS Topology : Transformerless Certifications : IEC62109-1/2, UL1741, RoHS, EN61000-6-1/3, FCC 15 Class B Mechanical: Dimensions (H x W x D) : 620 × 445 × 130 mm Net Weight : 27 kg Environmental: Operating Temperature : -10°C to +55°C (derate >45°C) Humidity : <100% (non-condensing) Noise Level : <60dB Installation : Indoor only SRNE 12kVA/12kW 3-Phase Hybrid Solar Inverter ASF48120SH3 Rated Output Power : 12kVA / 12,000W (3-phase) PV Input Capacity : 18kWp (9,000W + 9,000W across 2 MPPTs) Battery Voltage : 48V (compatible with Li-ion, Lead-acid, User-defined) Max. PV Input Voltage (Voc) : 800V DC per MPPT MPPT Voltage Range : 200–650V DC Max. Hybrid Charging Current : 260A (solar + grid/generator) AC Output Voltage : 230/400V AC, pure sine wave Switching Time : 10ms (typical) Max. Efficiency : 92% (European efficiency: 97.5%) Communication Interfaces : RS485, CAN, USB, Dry Contact; optional Wi-Fi/GPRS
