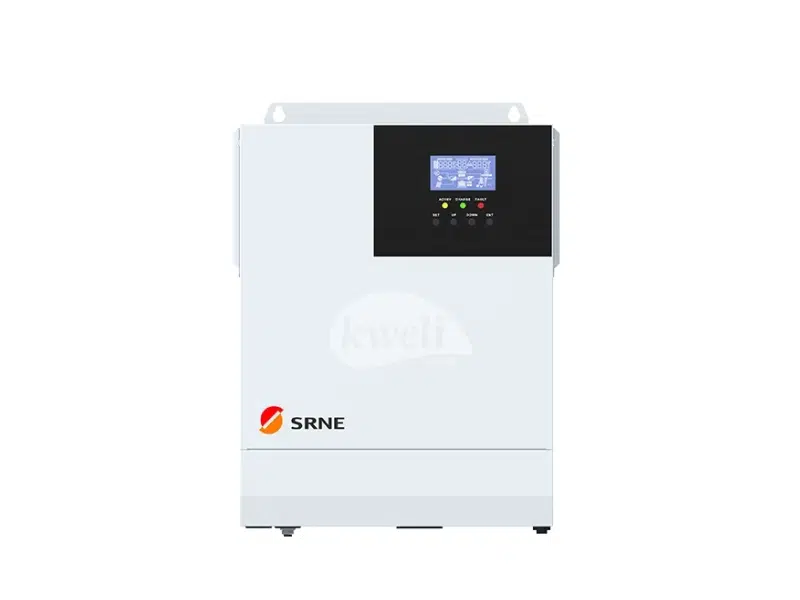

Description SRNE 3.3kVA/3.3kW 24V Hybrid Inverter HF2430S80-H General Specifications Model: HF2430S60-100 Rated Power: 3kVA / 3kW Nominal Battery Voltage: 24V Inverter Type: Pure Sine Wave Cooling: Forced air cooling with variable-speed fan Inverter Mode Rated Output Voltage: 230Vac ±5% Output Frequency: 50Hz ±0.3Hz / 60Hz ±0.3Hz Efficiency: >92% Peak Power: 6,000W Overload Protection: 102% < Load < 125%: Shutdown after 5 minutes 125% < Load < 150%: Shutdown after 10 seconds Load >150%: Shutdown after 5 seconds Output Short Circuit Protection: Circuit breaker AC Mode Rated Input Voltage: 220/230Vac Input Voltage Range: (170Vac~280Vac) ±2% / (90Vac-280Vac) ±2% Input Frequency: 50Hz / 60Hz (Auto Detection) Bypass Mode Efficiency: >95% Bypass Overload Current: 30A AC Reverse Protection: Available Conversion Time (Bypass to Inverter): 10ms (typical) MPPT Solar Charge Controller Maximum PV Open Circuit Voltage (Voc): 100Vdc MPPT Operating Voltage Range: 30V – 95Vdc PV Input Voltage Range: 30V – 100Vdc Maximum PV Input Power: 1400W Maximum PV Input Current: 60A MPPT Efficiency: 99.9% PV Charging Short Circuit Protection: Blown fuse Reverse Polarity Protection: Available Battery & Charging Battery Voltage Range: 18V – 33Vdc Battery Type Compatibility: Lead-acid and Lithium Maximum AC Charge Current: 60A Charge Current Accuracy: ±5A Overcharge Protection: Circuit breaker and blown fuse Lithium Battery Activation: Supported via both PV and Mains Design & Connectivity User Interface: LCD Display + LED Indicators + Touch Buttons Communication Interfaces: USB, RS485 (Supports Bluetooth, WiFi, GPRS), CAN Dry Node Control: Available Dimensions (L × W × D): 378mm × 280mm × 103mm Net Weight: 6.2kg Environmental & Safety Operating Temperature Range: -15°C to 55°C Storage Temperature Range: -25°C to 60°C Humidity Range: 5% to 95% (Conformal coating protection) Noise Level: ≤60dB Protection Features: Overload Protection Short Circuit Protection Over-Voltage/Under-Voltage Protection Battery Reverse Polarity Protection Intelligent Power Saving Mode Certification Safety Standard: CE (EN62109-1) EMC Compliance: EN61000 SRNE 3kVA/3kW 24V Hybrid Inverter HF2430S60-100 24V Battery Compatibility: Works seamlessly with both lead-acid and lithium-ion batteries. Multiple Charging & Load Modes: Offers various configurations to maximize energy efficiency. Efficient MPPT Solar Charging: Supports up to 4,000W PV power with a 99.9% MPPT efficiency. Hybrid Charging Support: Charges batteries via solar, grid, or generator with a maximum of 80A hybrid charging . Fast & Stable Power Output: Provides pure sine wave output , ensuring safe operation for sensitive appliances. Seamless Power Switching: 10 ms switchover between power sources for uninterrupted operation . Comprehensive Protection System: built-in protections for overvoltage, short circuits, overload, overheating, and anti-reverse charging . Remote Monitoring & Control: Supports RS485, CAN, USB, and optional Wi-Fi/GPRS for monitoring system performance. Compact & Lightweight Design: Space-saving (378mm x 280mm x 103mm) and lightweight (6.9kg) for easy installation. Wide Operating Temperature: Functions in -10°C to 55°C , making it suitable for diverse environments.
