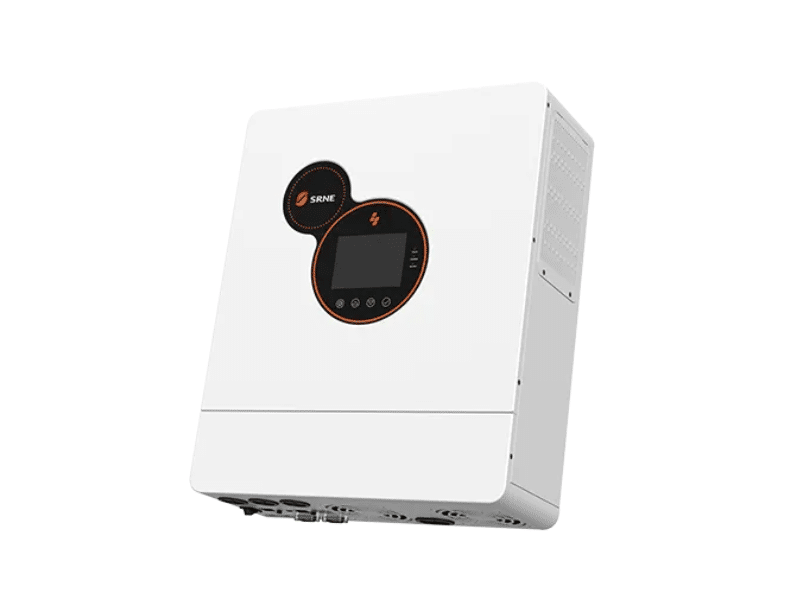

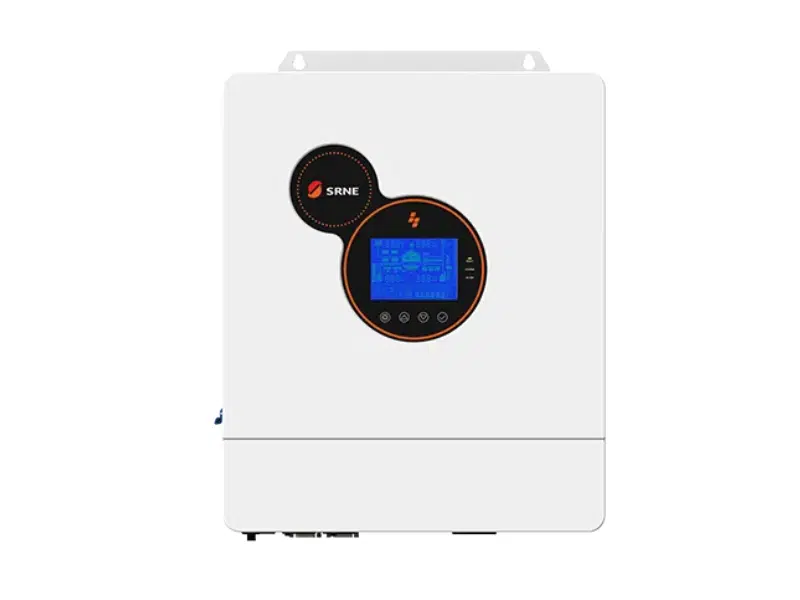

Description SRNE 5kVA/5kW 48V Hybrid Inverter HYP4850S100-H Rated Power: 5kVA / 5kW Maximum Power: 10,000VA Nominal Battery Voltage: 48V Battery Voltage Range: 40-60VDC Parallel Capacity: Up to 6 units (for single-phase or three-phase configuration) Cooling Method: Intelligent fan cooling Protection Degree: IP20 (Indoor use only) Weight: 13 kg Dimensions: 446.9 x 350 x 133 mm Inverter Output Rated Output Voltage: 230Vac (L/N/PE, Single-Phase) AC Frequency: 50/60Hz Waveform: Pure sine wave Switch Time: 10ms (typical) Load Motor Capacity: 4HP Maximum Efficiency: 92% MPPT Solar Charge Controller Maximum PV Input Power: 5,500W Number of MPPTs: 1 MPPT Efficiency: 99.9% Maximum PV Open Circuit Voltage (Voc): 500VDC MPPT Voltage Range: 120-450VDC Maximum PV Input Current: 22A Battery Charger Maximum Solar Charging Current: 100A Maximum AC Charging Current: 60A Maximum Hybrid Charging Current: 100A Battery Type Compatibility: Li-ion / Lead-acid / User-defined Grid/Generator Input Input Voltage Range: 90-280VDC Input Frequency Range: 50/60Hz Bypass Overload Current: 40A Advanced Features Supports operation without batteries Parallel operation up to 6 units for increased capacity and three-phase configuration Wi-Fi/GPRS remote monitoring (optional external module) Time-slot function for energy cost optimization Transformerless topology for improved efficiency and lightweight design BMS communication support for lithium battery integration Aesthetic and compact industrial design for easy installation Safety & Protection PV overvoltage and current limiting protection Battery overvoltage and undervoltage protection AC output overload and short circuit protection Heat sink over-temperature protection Reverse polarity protection for PV and battery Parallel connection error protection Synchronization signal protection in parallel mode Certifications EN61000 / FCC Part15 ClassB / IEC 62109 / IEC 62477 / IEC 62040 / UKCA / PSE SRNE 5kVA/5kW 48V Hybrid Inverter HYP4850S100-H Rated Power: 5kVA / 5kW Maximum Power: 10,000VA Nominal Battery Voltage: 48V Battery Voltage Range: 40-60VDC Parallel Capacity: Up to 6 units (for single-phase or three-phase configuration) Cooling Method: Intelligent fan cooling Protection Degree: IP20 (Indoor use only) Weight: 13 kg Dimensions: 446.9 x 350 x 133 mm Inverter Output Rated Output Voltage: 230Vac (L/N/PE, Single-Phase) AC Frequency: 50/60Hz Waveform: Pure sine wave Switch Time: 10ms (typical) Load Motor Capacity: 4HP Maximum Efficiency: 92% MPPT Solar Charge Controller Maximum PV Input Power: 5,500W Number of MPPTs: 1 MPPT Efficiency: 99.9% Maximum PV Open Circuit Voltage (Voc): 500VDC MPPT Voltage Range: 120-450VDC Maximum PV Input Current: 22A Battery Charger Maximum Solar Charging Current: 100A Maximum AC Charging Current: 60A Maximum Hybrid Charging Current: 100A Battery Type Compatibility: Li-ion / Lead-acid / User-defined Grid/Generator Input Input Voltage Range: 90-280VDC Input Frequency Range: 50/60Hz Bypass Overload Current: 40A Advanced Features Supports operation without batteries Parallel operation up to 6 units for increased capacity and three-phase configuration Wi-Fi/GPRS remote monitoring (optional external module) Time-slot function for energy cost optimization Transformerless topology for improved efficiency and lightweight design BMS communication support for lithium battery integration Aesthetic and compact industrial design for easy installation Safety & Protection PV overvoltage and current limiting protection Battery overvoltage and undervoltage protection AC output overload and short circuit protection Heat sink over-temperature protection Reverse polarity protection for PV and battery Parallel connection error protection Synchronization signal protection in parallel mode Certifications EN61000 / FCC Part15 ClassB / IEC 62109 / IEC 62477 / IEC 62040 / UKCA / PSE
