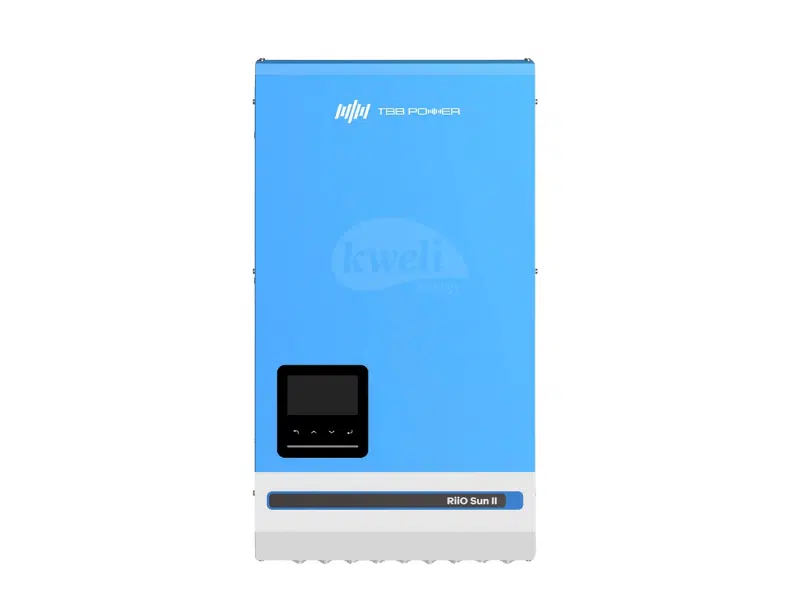

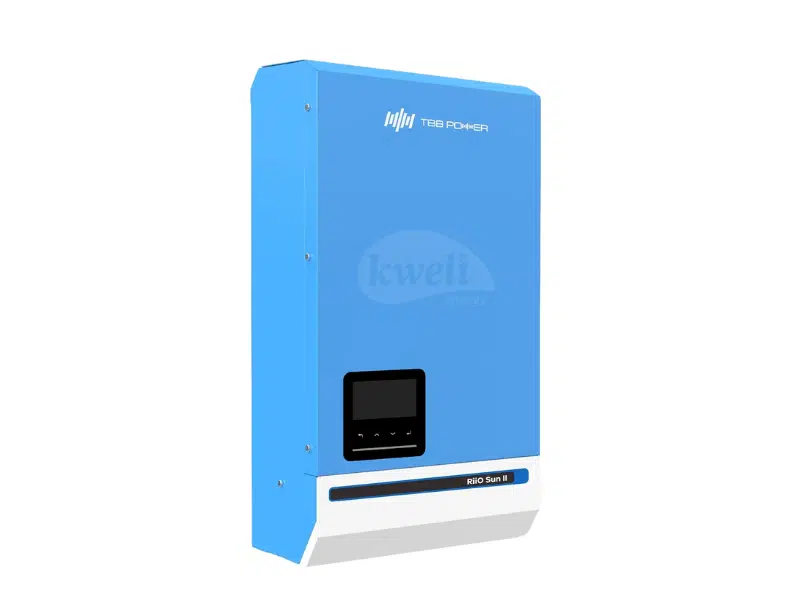

Buy new TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter; Built-in Dual MPPT Charge Controllers (8.8kWp/250Voc), Battery Charger, Pure Sine Wave Output, Transformer-Based Design in Uganda - - Fr

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 3,699,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter TBB RiiO Sun II 6kVA/6kW 48V All-in-One Solar Inverter General Specifications: Nominal Battery Voltage: 48V Continuous Output Power: 6,000 VA (6kVA) Maximum Output Power: 6,000 W Peak Power: 9,000 W (150%) Surge Capacity: 18,000 W (300%) AC Output Voltage: 220/230/240V ± 2% AC Output Frequency: 50/60 Hz ± 0.1% Harmonic Distortion: <2% Load Power Factor: 1.0 MPPT Solar Charge Controller: Maximum PV Open Circuit Voltage (Voc): 250V MPPT Voltage Range: 120–250V Number of MPPT Trackers: 2 Maximum PV Input Current per Tracker: 36A Maximum PV Short Circuit Current per Tracker: 40A Maximum PV Input Power: 8,800 W (4,400 W per tracker) MPPT Efficiency: 98% Charger: Charge Voltage: Absorption: 57.6V, Float: 55.2V Battery Compatibility: AGM, GEL, OPzV, Lead-Carbon, Li-ion, Flooded, Traction, Lithium Maximum AC Charge Current: 100A Temperature Compensation: Yes Additional Features: Protection: Short circuit, overload, high/low battery voltage, high temperature, input voltage out of range, fan block. Transfer Time: 2ms (<15ms in weak AC source mode). Efficiency: 94% inverter efficiency. Design and Usability: Cooling: Forced fan Protection Index: IP21 Dimensions: 570 x 310 x 154 mm Net Weight: 25 kg Operating Temperature: -20°C to 65°C Relative Humidity: 95% (non-condensing)
