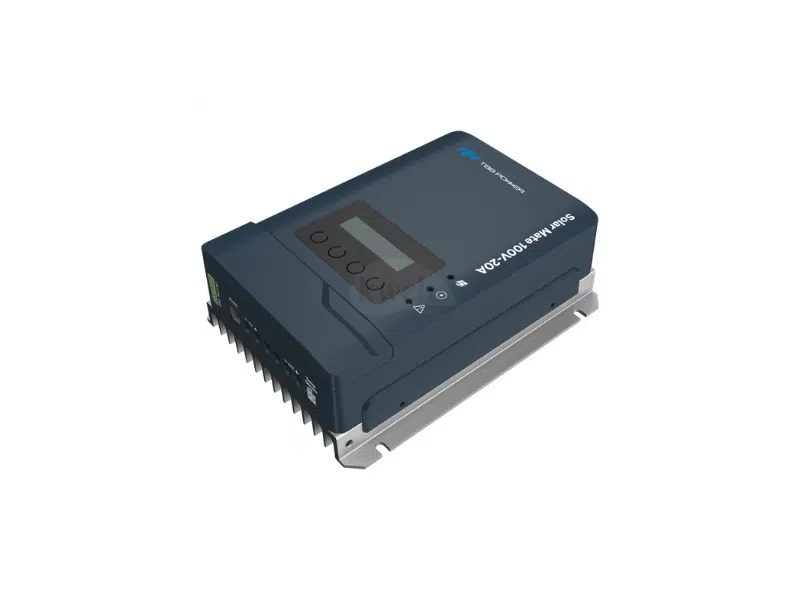

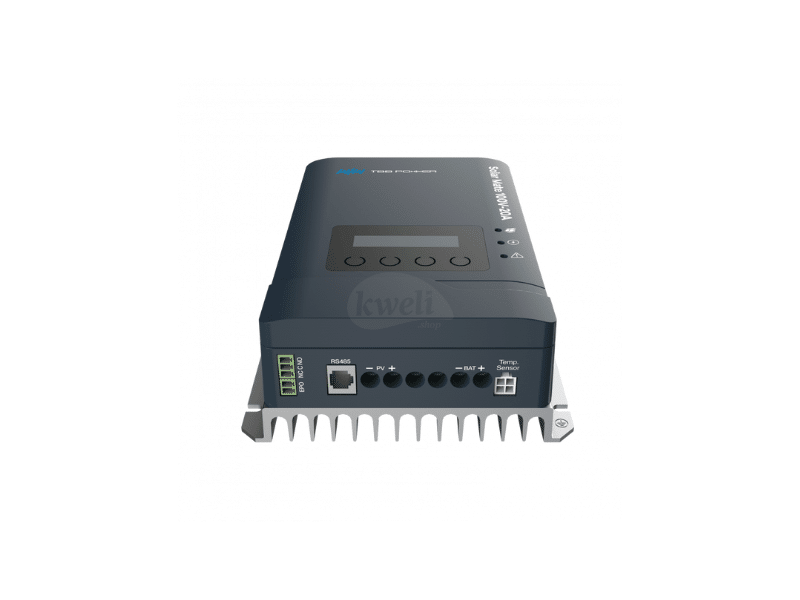

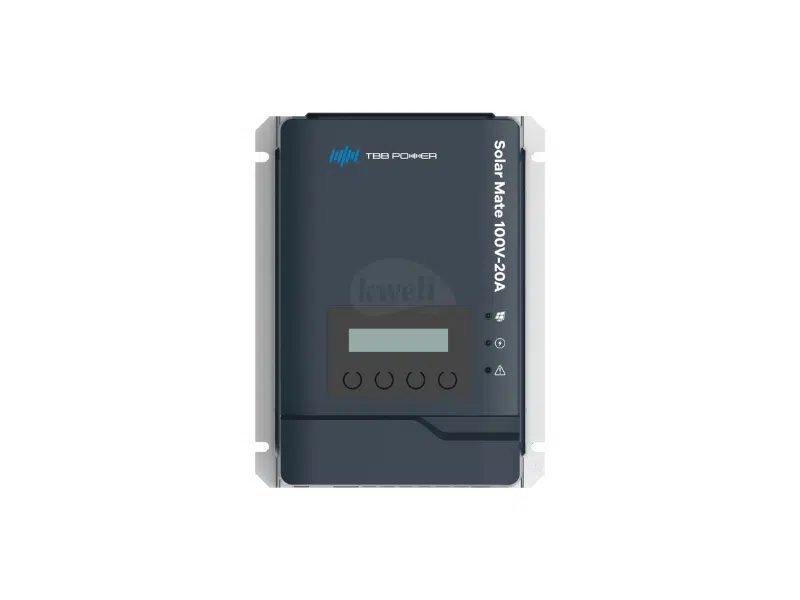

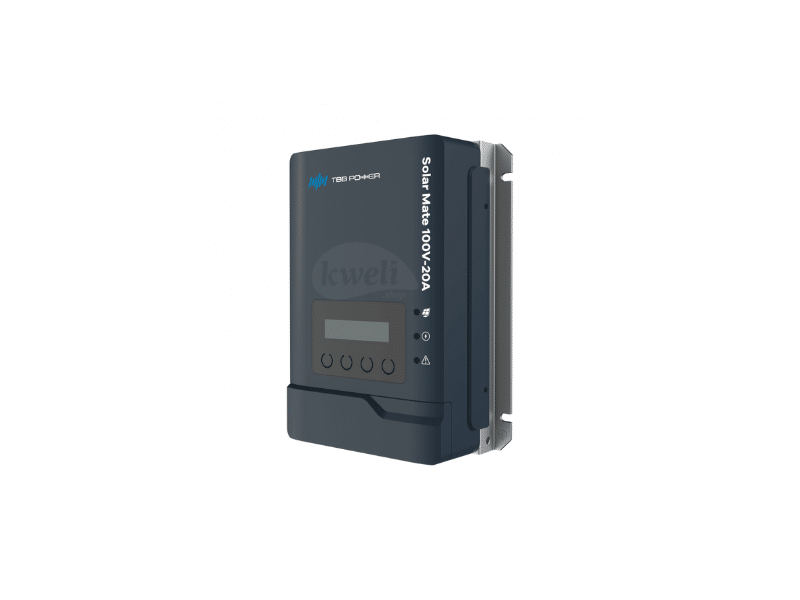

Buy New TBB SolarMate 100V 20A MPPT Solar Charge Controller SP100-20; 12V/24V/48V, Bluetooth Display, High Efficiency, 294W/588W/1176W, 100Vpv input in Uganda & South Sudan

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 249,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

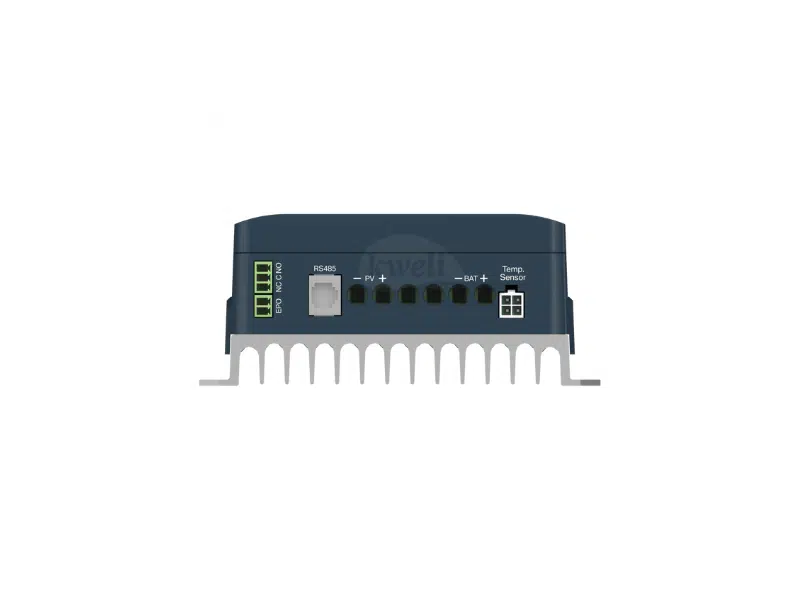

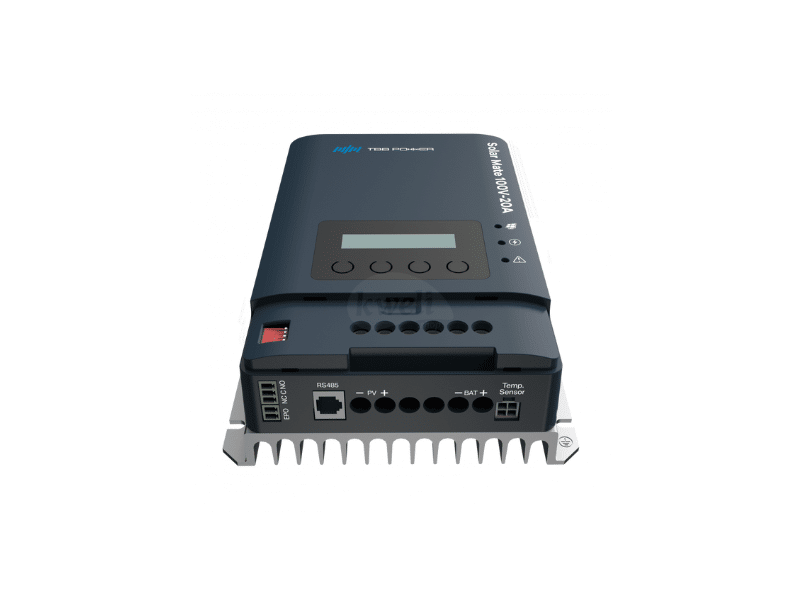

Description TBB SolarMate 100V 20A MPPT Solar Charge Controller SP100-20 Bluetooth connectivity: allows monitoring and configuration via the TBB SolarMate app. LCD Display: Provides real-time system status and data. Communication Port: RS485 interface for integration with other devices. Data Logging: Supports 365 days of historical data recording. Protection Features: Includes over-temperature, over-voltage, and over-current protections. TBB SolarMate 100V 20A MPPT Solar Charge Controller SP100-20 Nominal Battery Voltage: Compatible with 12V, 24V, and 48V systems. Maximum Charging Current: 20 Amperes. Maximum PV Input Power: 12V system: up to 294W 24V system: up to 588W 48V system: up to 1176W Maximum PV Input Voltage: 100V. Maximum Efficiency: Up to 98.2%. MPPT Efficiency: Up to 99%. Charging Parameters: Absorption Charge Voltage: 12V system: 14.4V 24V system: 28.8V 48V system: 57.6V Float Charge Voltage: 12V system: 13.5V 24V system: 27.0V 48V system: 54.0V Charging Algorithm: TBB Premium II multistage charging, suitable for various lead-acid battery types. Physical Specifications: Dimensions: 205 mm (H) x 160 mm (W) x 65 mm (D). Weight: 1.4 kg. Protection Class: IP31. Operating Temperature Range: -40°C to +70°C. Humidity: 5% to 95% (non-condensing). Features: Bluetooth connectivity: allows monitoring and configuration via the TBB SolarMate app. LCD Display: Provides real-time system status and data. Communication Port: RS485 interface for integration with other devices. Data Logging: Supports 365 days of historical data recording. Protection Features: Includes over-temperature, over-voltage, and over-current protections.
