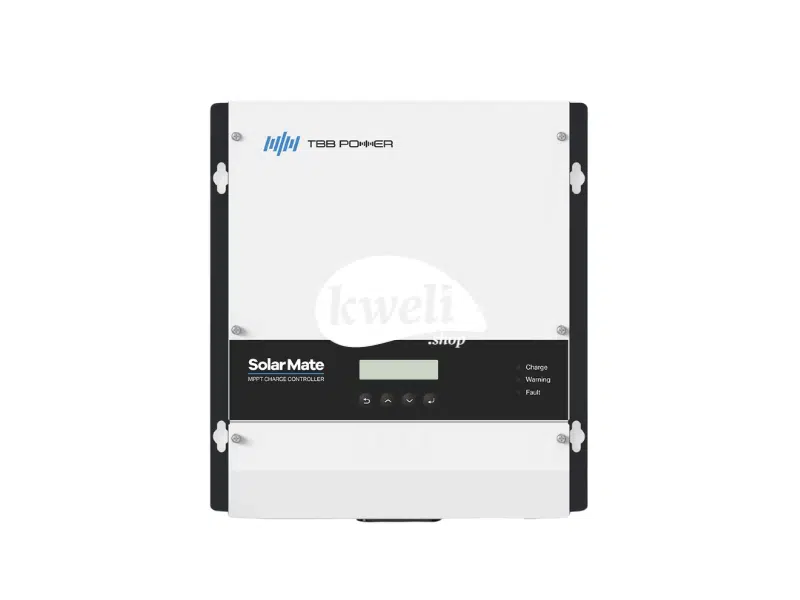

Buy New TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80; 24V/48V, Bluetooth LCD Display, High Efficiency, 3000W/6000W, 150Vpv Input in Uganda & South Sudan
Description TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80 High Efficiency: Dynamic MPPT efficiency exceeding 99.9%. Overall efficiency up to 98%, with European weighted efficiency up to 97.3%. High Power Capacity: Capable of charging up to 7,056W at 40°C. Optimised Solar Performance: Excellent performance in low solar insulation and at sunrise. Wide MPPT operating voltage range for flexibility in panel configurations. Battery Compatibility: Built-in TBB Premium II battery charging algorithm. Supports both lead-acid and lithium-ion batteries. Data Logging: Supports 365 days of historical data logging. Tracks system performance, including solar array voltage, battery voltage, and power output. Parallel Operation: Up to 6 units can operate in parallel for higher power setups. Communication and Control: RS485 interface with support for auxiliary contacts and T-Bus communication..
TBB SolarMate 150V 80A MPPT Solar Charge Controller SP150-80 Nominal Battery Voltage: Compatible with 24V and 48V systems. Maximum Charging Current: 80 Amperes. Maximum PV Input Power: 24V system: up to 4,500W 48V system: up to 9,000W Maximum PV Input Voltage: 150V. MPPT Voltage Range: 65V to 145V. Maximum Efficiency: Up to 98%. MPPT Efficiency: Up to 99.9%. Charging Parameters: Absorption Charge Voltage: 24V system: 28.8V 48V system: 57.6V Float Charge Voltage: 24V system: 27.0V 48V system: 54.0V Charging Algorithm: TBB Premium III multistage charging, suitable for various lead-acid and lithium-ion battery types. Physical Specifications: Dimensions: 353 mm (H) x 293 mm (W) x 117 mm (D). Weight: 7.8 kg. Protection Class: IP21. Operating Temperature Range: -25°C to +60°C. Humidity: 5% to 95% (non-condensing).
