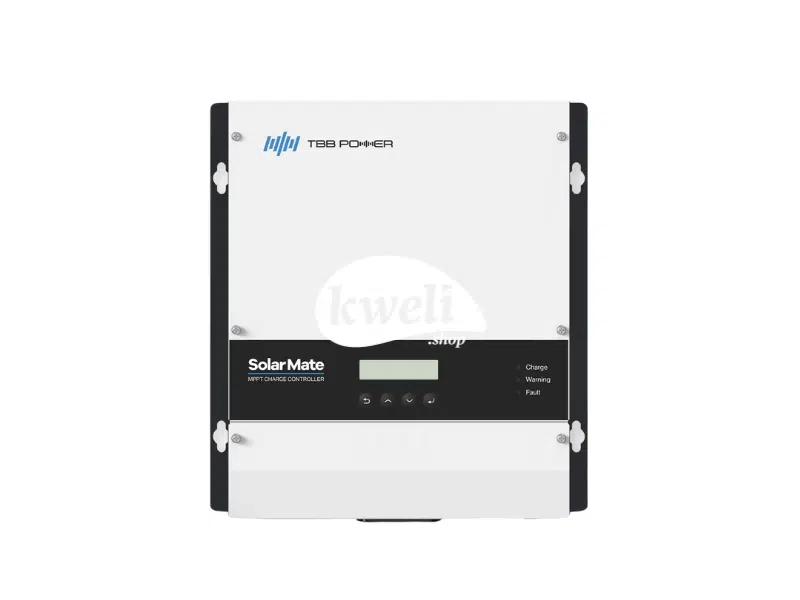

Buy New TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100; 48V, Bluetooth LCD Display, High Efficiency, 5880W/7500W, 250Vpv Input in Uganda & South Sudan

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 1,890,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100 High Efficiency: MPPT efficiency >99.9%, overall efficiency up to 98%. Wide PV Range: Supports 250V input and 65–245V MPPT range. High Power Capacity: Up to 7,500W PV input, 5,880W charging for 48V systems. Battery Compatibility: Works with lead-acid and lithium-ion batteries, with advanced multistage charging. Data Logging: 365 days of system performance tracking. Parallel Operation: Supports up to 6 units for scalability. Advanced Communication: RS485 interface and T-Bus compatibility. User-Friendly Display: LED + LCD for real-time monitoring. Durable Design: Forced cooling, IP21 rating, and operation up to 60°C. Programmable Features: Includes equalization charging and temperature compensation. TBB SolarMate 250V 100A MPPT Solar Charge Controller SP250/100 Nominal Battery Voltage: 48V Maximum Charging Current: 100A Maximum Charging Power: 48V: 5,880W Maximum PV Input Power: 48V: 7,500W Maximum PV Input Voltage (Voc): 250V MPPT Voltage Range: 65–245V Max PV Short Circuit Current: 80A Efficiency: Maximum MPPT Efficiency: ≥99.9% Overall Efficiency: Up to 98% Self-Consumption: 37mA @ 48V Charging Parameters: Charge Voltage (Absorption): 57.6V Charge Voltage (Float): 54V Charging Algorithm: TBB Premium II multistage Temperature Compensation: -3mV/°C/cell (default) Equalization Charging: Programmable Display: LED + LCD Communication Port: RS485, with support for auxiliary contact and T-Bus communication Parallel Functionality: Up to 6 units can operate in parallel for scalability Data Logging: 365 days of historical records, including: Real-time solar array voltage, battery voltage, and charging data Logs for PV start charging time, transfer to float, power loss, and fault time Cooling: Forced fan Operating Temperature: -25°C to 60°C (power derated above 40°C) Storage Temperature: -40°C to 70°C Humidity: 5%–95% (non-condensing) Altitude: Up to 3,000m (fully rated up to 2,000m) Physical: Protection Category: IP21 Dimensions (L × W × H): 352.2 × 293 × 116.2 mm Weight: 7.8 kg Certifications: EN61000-6-1, EN61000-6-3, EN62109-1
