Buy new TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel 66HD610; Voc 48.70 V, Vmp 40.48 V, Imp 15.07 A, Isc 15.94 A, 22.6 % Efficiency in Uganda - - Free Delivery > Long warran

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 449,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

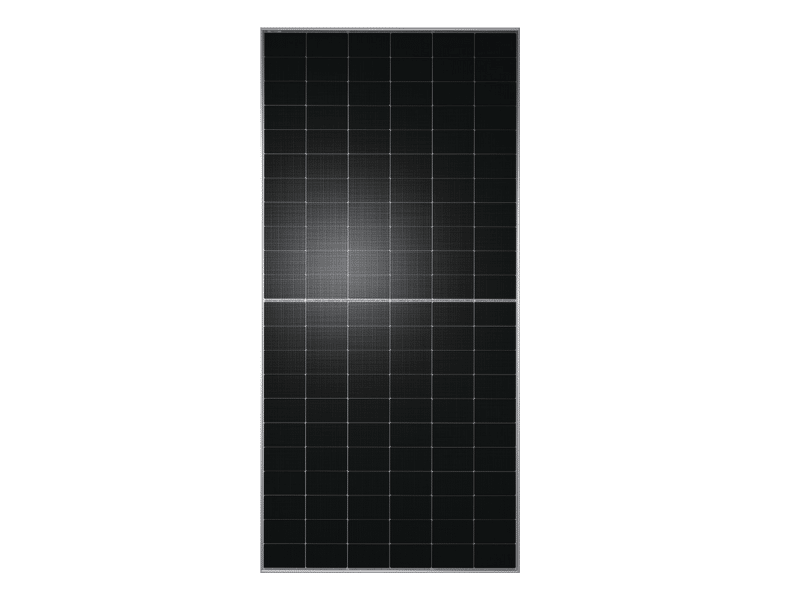

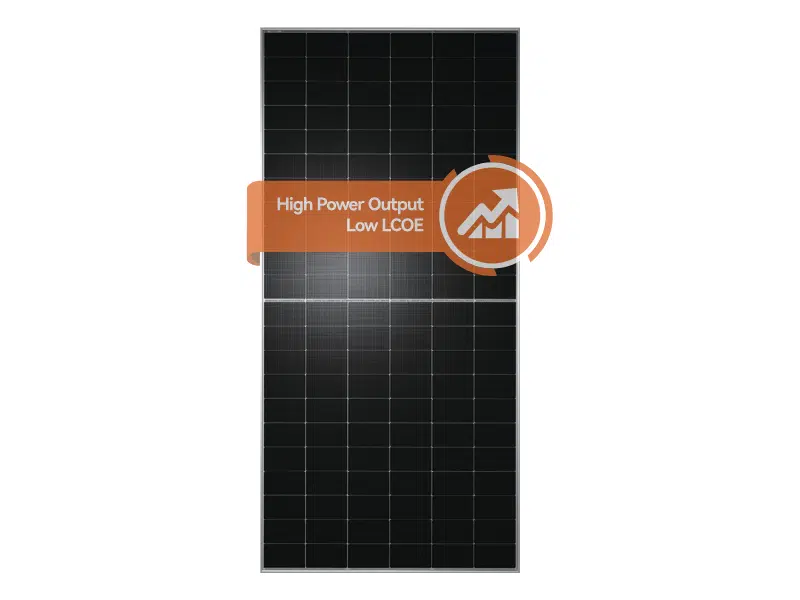

TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel N-type bifacial half-cell technology delivers higher energy yield and superior efficiency. Dual-glass construction enhances module strength and long-term durability. Lower LCOE achieved through reduced degradation and excellent temperature performance. Performs reliably in hot, humid, and dusty conditions. Engineered for utility-scale, commercial, and industrial solar applications. Technical Specifications Model: TWMNH-66HD610 Cell Type: N-type Monocrystalline (TNC) Cell Configuration: 132 (6×22) Half-cells Maximum Power (Pmax): 610 W Open-Circuit Voltage (Voc): 48.70 V Voltage at Maximum Power (Vmp): 40.48 V Current at Maximum Power (Imp): 15.07 A Short-Circuit Current (Isc): 15.94 A Module Efficiency: 22.6 % Power Tolerance: 0 ~ +3 % Maximum System Voltage: 1500 V DC Maximum Series Fuse Rating: 30 A Operating Temperature: –40 °C to +70 °C Mechanical Data Dimensions: 2382 × 1134 × 30 mm Weight: 32.5 kg Front Glass: 2.0 mm AR-coated semi-tempered glass Rear Glass: 2.0 mm semi-tempered glass Frame: Anodised aluminium alloy Junction Box: IP68 with 3 bypass diodes Cable: 4.0 mm² (+400 mm / –200 mm, customisable length) Wind / Snow Load: 2400 Pa / 5400 Pa Modules per Pallet: 36 pcs Modules per 40′ HC Container: 720 pcs Performance & Reliability Temperature Coefficient of Pmax: –0.28 % / °C Temperature Coefficient of Voc: –0.24 % / °C Temperature Coefficient of Isc: +0.046 % / °C Bifaciality Coefficient (Pmax): 80 ± 5 % First-Year Power Degradation: ≤ 1 % Annual Degradation (after first year): ≤ 0.4 % Expected Power Retention after 30 Years: ≈ 87.4 % Certifications: IEC 61215 (2021), IEC 61730 (2023), IEC 62804 (PID), IEC 61701 (Salt Mist), IEC 62716 (Ammonia), IEC 60068-2-68 (Sand); ISO 9001, ISO 14001, ISO 45001, ISO 50001 | #KweliGotYou| Order TW Solar 610-Watt N-type Monocrystalline Half-cell Bifacial Solar Panel 66HD610; Voc 48.70 V, Vmp 40.48 V, Imp 15.07 A, Isc 15.94 A, 22.6 % Efficiency online and enjoy free delivery across Uganda > Long warranty > Lifetime After-sales Support
