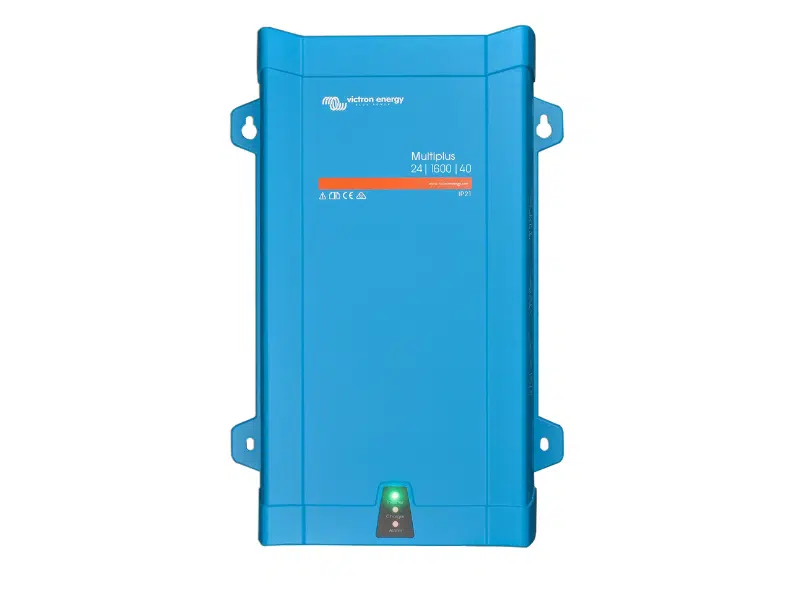

Buy new Victron MultiPlus 24/1600/40-16 230V Inverter/Charger; 24V, 1600VA/1300W, 40A Battery Charger, 16A Transfer Switch in Uganda - - Free Delivery > Long warranty > Lifetime After-sales Support

Ask about this product

0 /5.0 (0 reviews)

People are viewing right now

Pricing

Ugx 2,590,000 /pc

100 available

Minimum order qty 1

QTY

Inhouse product

Message Seller

Description Victron MultiPlus 24/1600/40-16 230V Inverter/Charger Technical Specifications General / Inverter Nominal Battery Voltage: 24V DC Continuous Output Power: 1600VA / 1300W at 25 °C Continuous Output Power: 1200W at 40 °C; 800W at 65 °C Peak Power: 3000W (1 sec) Output Voltage: 230V ±2% Output Frequency: 50Hz ±0.1% Waveform: Pure Sine Wave Efficiency: 93–94% No-load Power Consumption: ~10W (8W in Search Mode) Battery Charger Maximum Charge Current: 40A Absorption Voltage: 28.8V Float Voltage: 27.6V Storage Voltage: 26.4V Battery Temperature Sensor: Included AC Input / Transfer Switch AC Input Voltage Range: 187–265V AC AC Input Frequency: 45–65Hz Maximum Input/Pass-through Current: 16A Transfer Time: <20ms Communication & Control Interface: VE.Bus (parallel & 3-phase ready) Programmable Relay: Yes Remote On/Off: Yes Monitoring: GX devices (Cerbo GX, Color Control, etc.), VRM Portal, VictronConnect Design & Protection Cooling: Fan assisted Enclosure: Aluminium, IP20 Operating Temperature: –40 °C to +65 °C (derating above 40 °C) Humidity: Up to 95% (non-condensing) Altitude: Up to 2000m Protections: Overload, short circuit, battery high/low, over-temperature Dimensions & Weight Size (H × W × D): 362 × 258 × 218 mm Net Weight: ~10 kg Compliance & Standards Safety: EN-IEC 60335-1 / 60335-2-29, IEC 62109-1 EMC: EN 55014-1 / EN 55014-2 / IEC 61000-6-1/2 Automotive: ECE R10 (24V models) Victron MultiPlus 24/1600/40-16 230V Inverter/Charger Pure Sine Wave Output: Reliable AC power for sensitive electronics and appliances. Inverter & Charger in One: 1600VA (1300W) inverter with integrated 40A multi-stage battery charger. UPS Function: Fast transfer (<20 ms) ensures uninterrupted power during outages. PowerAssist & PowerControl: Supplements grid or generator power and prevents overload. Flexible System Expansion: Parallel operation (up to 6 units) and 3-phase configuration options. Smart Battery Charging: Adaptive algorithm with bulk, absorption, float, and storage modes. Remote Monitoring & Control: Via VE.Bus, GX devices (e.g. Cerbo GX) and VRM Portal. Comprehensive Protection: Overload, short circuit, high/low battery voltage, and over-temperature safeguards.
