Description Victron SmartSolar Charge Controller MPPT 100/30 Battery Voltage: 12/24 V Auto Select Rated Charge Current: 30 A Nominal PV Power (12V): 440 W Nominal PV Power (24V): 880 W Maximum PV Open Circuit Voltage: 100 V Maximum PV Short Circuit Current: 35 A Maximum Efficiency: 98% Self-Consumption: 30 mA (12V), 20 mA (24V) Operating Temperature: -30 to +60 °C (full rated output up to 40 °C) Humidity: 95%, non-condensing Protection Category: IP43 (electronics), IP22 (connection area) Dimensions (h x w x d): 130 x 186 x 70 mm Weight: 1.3 kg

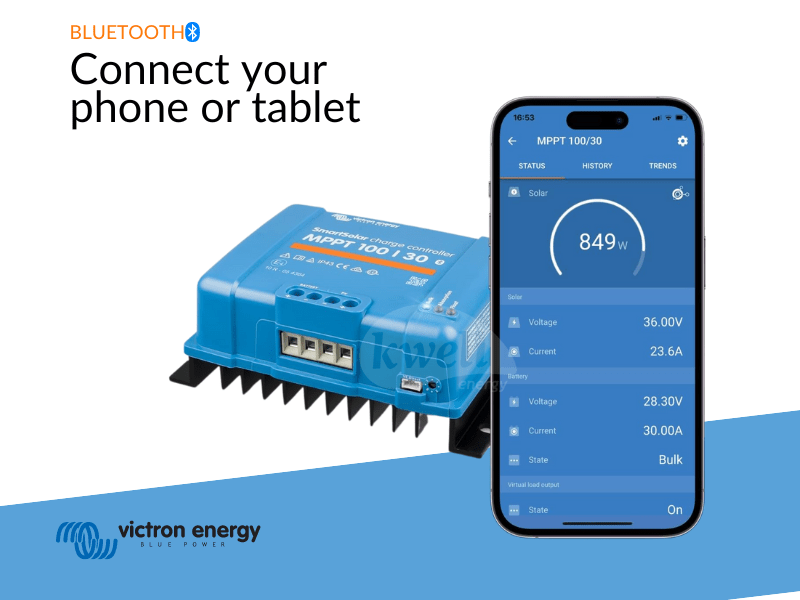

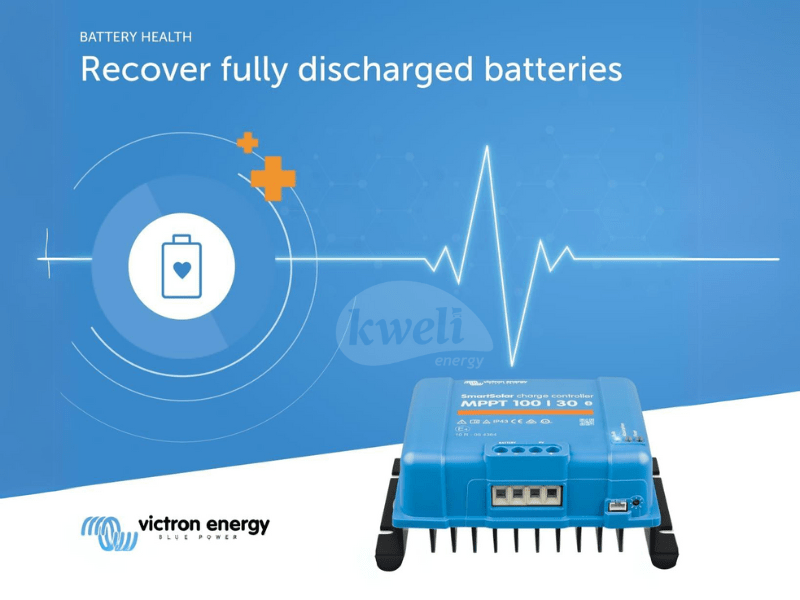

Victron SmartSolar Charge Controller MPPT 100/30 Rated Charge Current: 30 A, Maximum PV Open Circuit Voltage: 100 V Ultra-fast MPPT: Improves energy harvest by up to 30% compared to PWM controllers. Advanced MPPT Detection: Maximises energy harvest even in partial shading conditions. High Efficiency: Features an outstanding conversion efficiency of over 98% without the need for a cooling fan. Flexible Charge Algorithm: Fully programmable with multiple pre-set algorithms. Extensive Protection: Includes over-temperature, PV short circuit, PV reverse polarity, and reverse current protection. Bluetooth Smart Built-in: Allows for wireless setup, monitoring, updates, and synchronisation. VE.Direct Port: For wired connections to various devices. Battery Recovery Function: Can initiate charging for batteries discharged to zero volts and reconnect to fully discharged Li-ion batteries.
