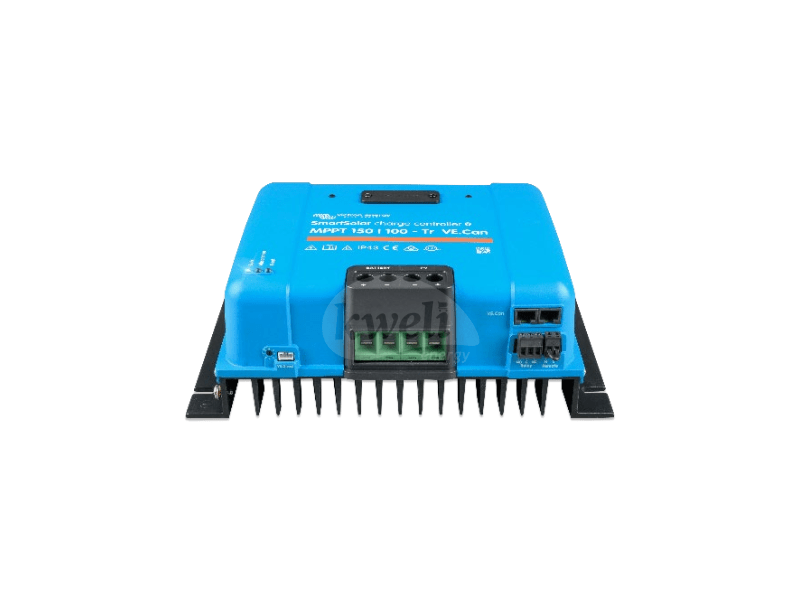

Description Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can Rated Charge Current: 100A Battery Voltage: 12/24/48V (Auto Select), 36V (manual) Nominal PV Power: 12V: 1450W 24V: 2900W 36V: 4350W 48V: 5800W Maximum PV Open Circuit Voltage: 150V (absolute maximum) Maximum Efficiency: 98% Operating Temperature Range: -30°C to +60°C Protection Rating: IP43 (electronic components), IP22 (connection area) Dimensions: Tr models: 216 x 295 x 103 mm MC4 models: 246 x 295 x 103 mm Weight: 4.5 kg

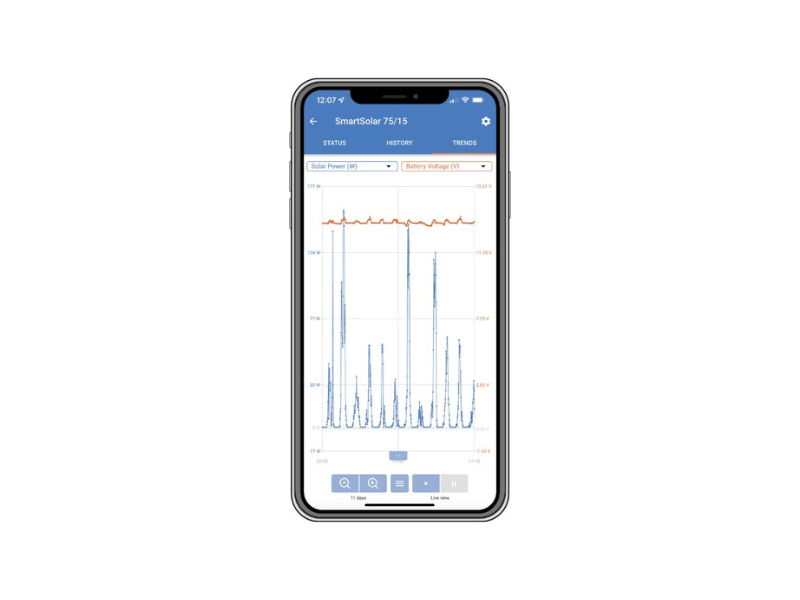

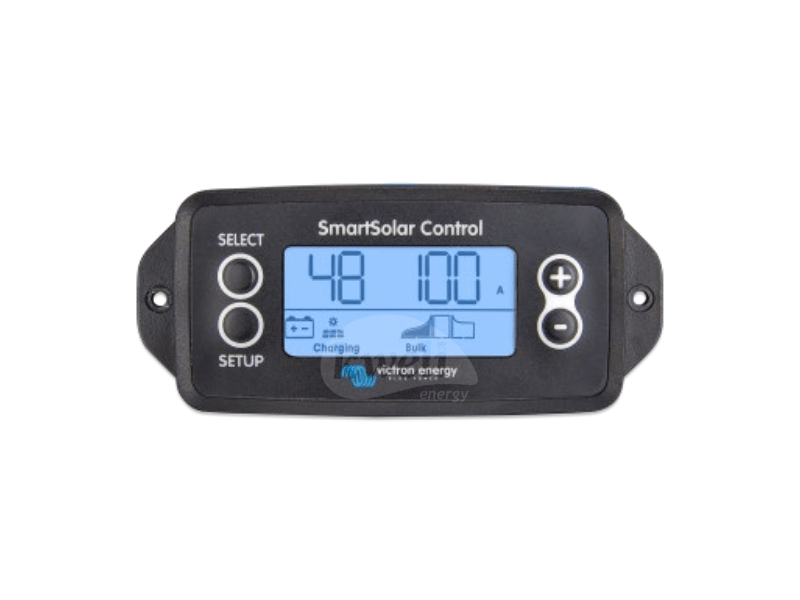

Victron SmartSolar Charge Controller MPPT 150/100Tr VE.Can Ultra-fast MPPT: Enhances energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers, especially in varying light conditions. Advanced MPPT Detection: Optimises energy harvest under partial shading conditions by ensuring the controller locks onto the optimal MPP, avoiding suboptimal points. High Efficiency: No cooling fan is required; efficiency exceeds 98%. Flexible Charge Algorithm: Fully programmable with eight pre-set algorithms, offering customisation for different battery types. Robust Protection: Includes over-temperature, PV short circuit, reverse polarity, and current protection. Bluetooth Smart Built-in: Enables wireless setup, monitoring, updates, and synchronisation with other Victron devices. Wired Connectivity: Options for VE.Direct or VE.Can connect to other systems or monitoring devices. Battery Recovery Function: Capable of charging batteries discharged to zero volts and reconnecting to fully discharged Li-ion batteries with integrated disconnect functions. Programmable Relay: Allows for custom alarms or event-triggered actions. Optional LCD Display: Easily attachable to the front of the controller for on-site monitoring
